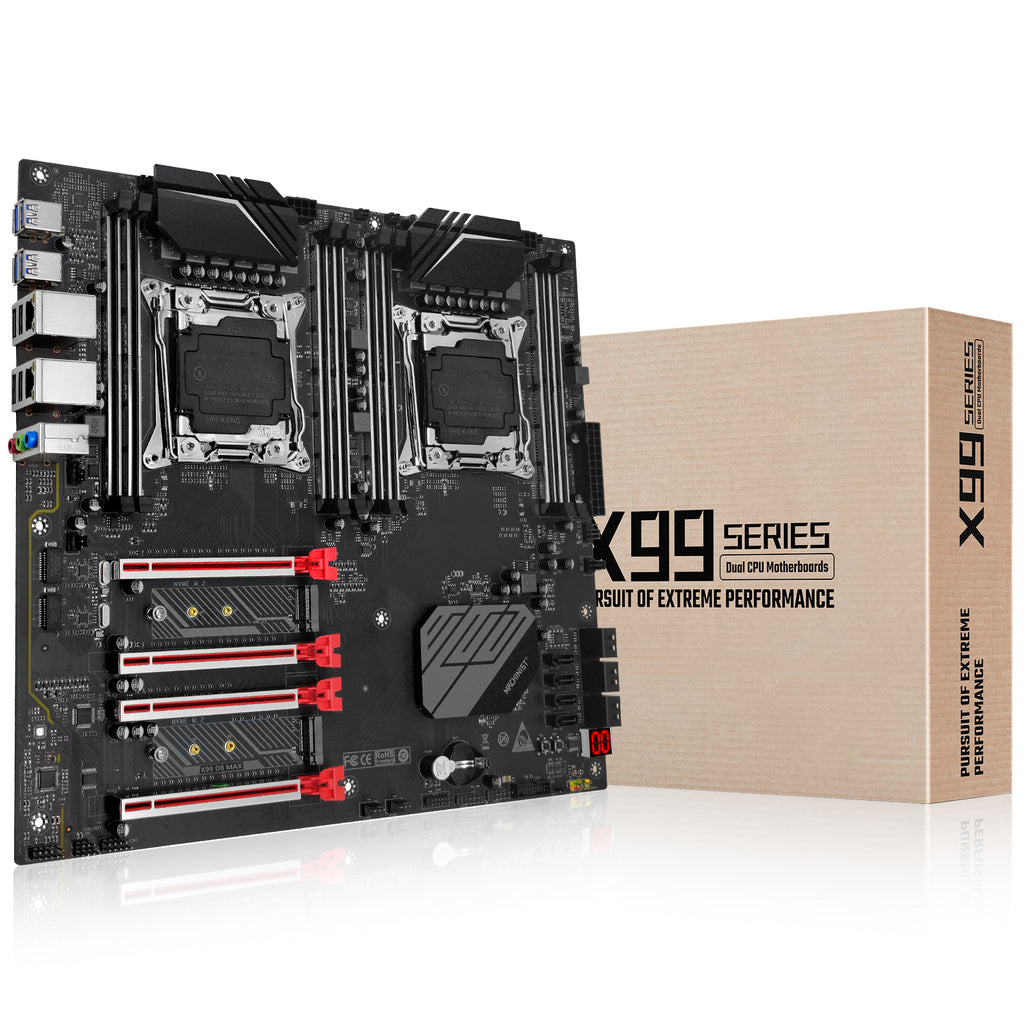

MACHINIST X99 D8 MAX Dual CPU Motherboard for Intel LGA 2011-3 XEON E5 V3/V4 E-ATX
$159.99 USD
Sale price
$159.99 USD
Regular price
$269.99 USD
Skip to product information
MACHINIST X99 D8 MAX Dual CPU Motherboard for Intel LGA 2011-3 XEON E5 V3/V4 E-ATX
$159.99 USD
Sale price
$159.99 USD
Regular price
$269.99 USD

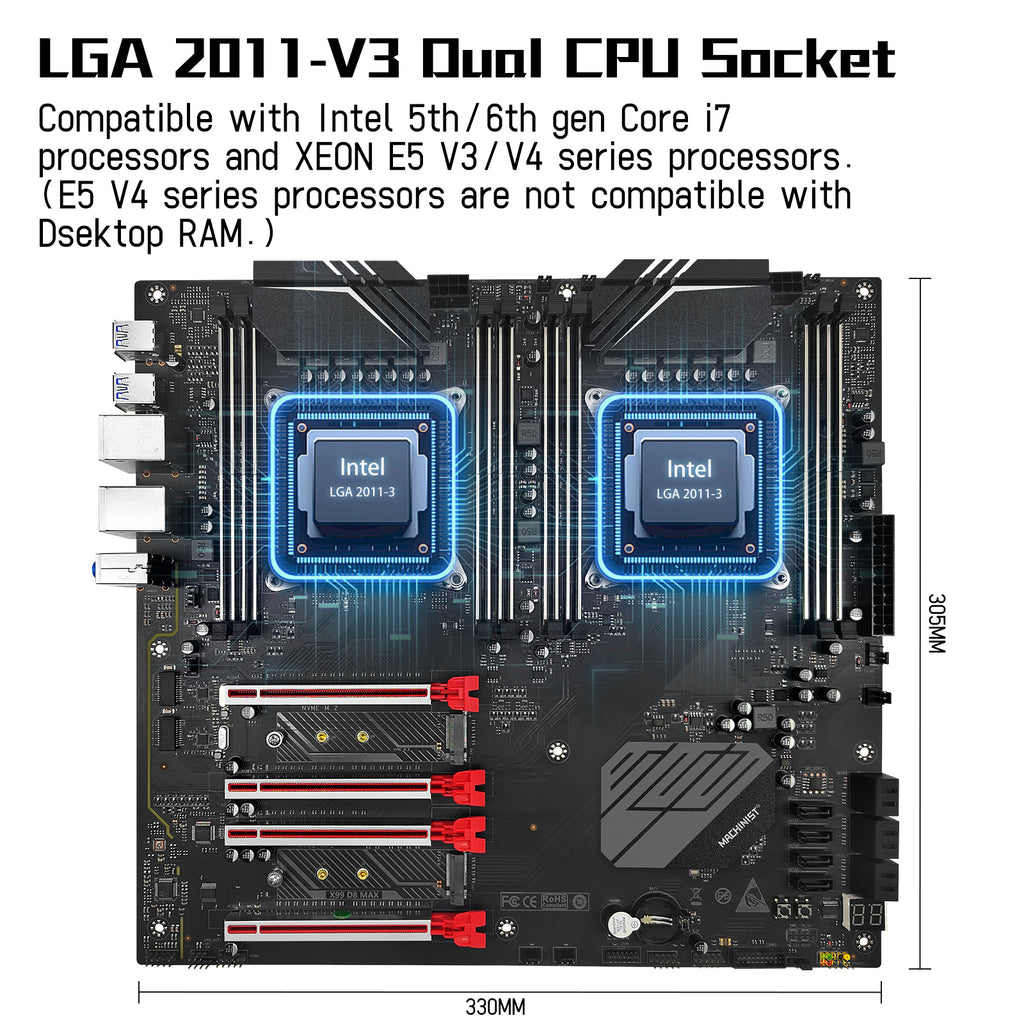

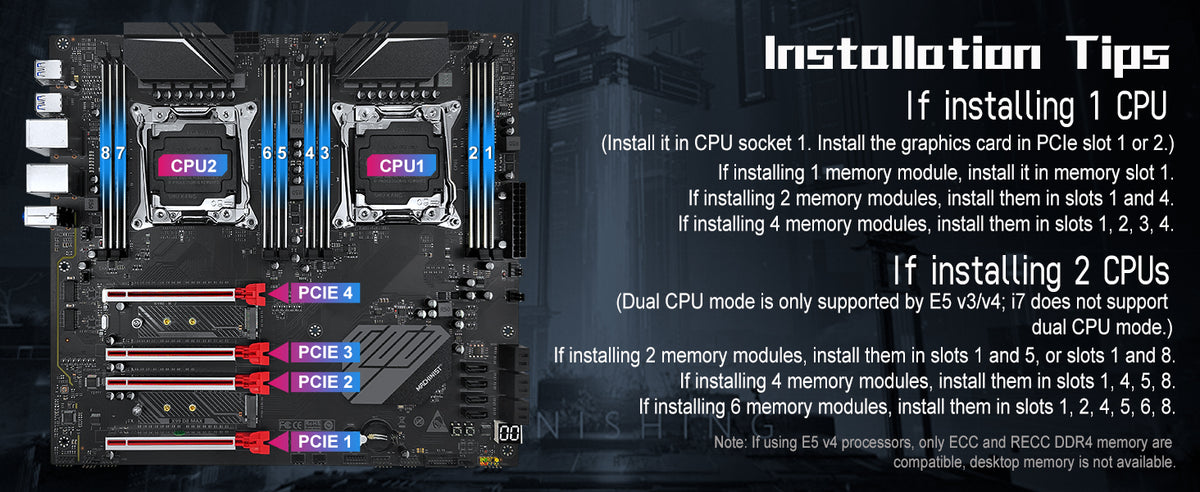

Intel dual CPU sockets: This C612 server chip motherboard is designed with dual CPU sockets, which can support Intel Core i7 5th/6th generation processors and Xeon E5 V3/V4 series processors on LGA 2011-3 socket. (Note: If only one CPU is installed, please install it in the right slot, and the graphics card needs to be installed in the bottom two slots.)

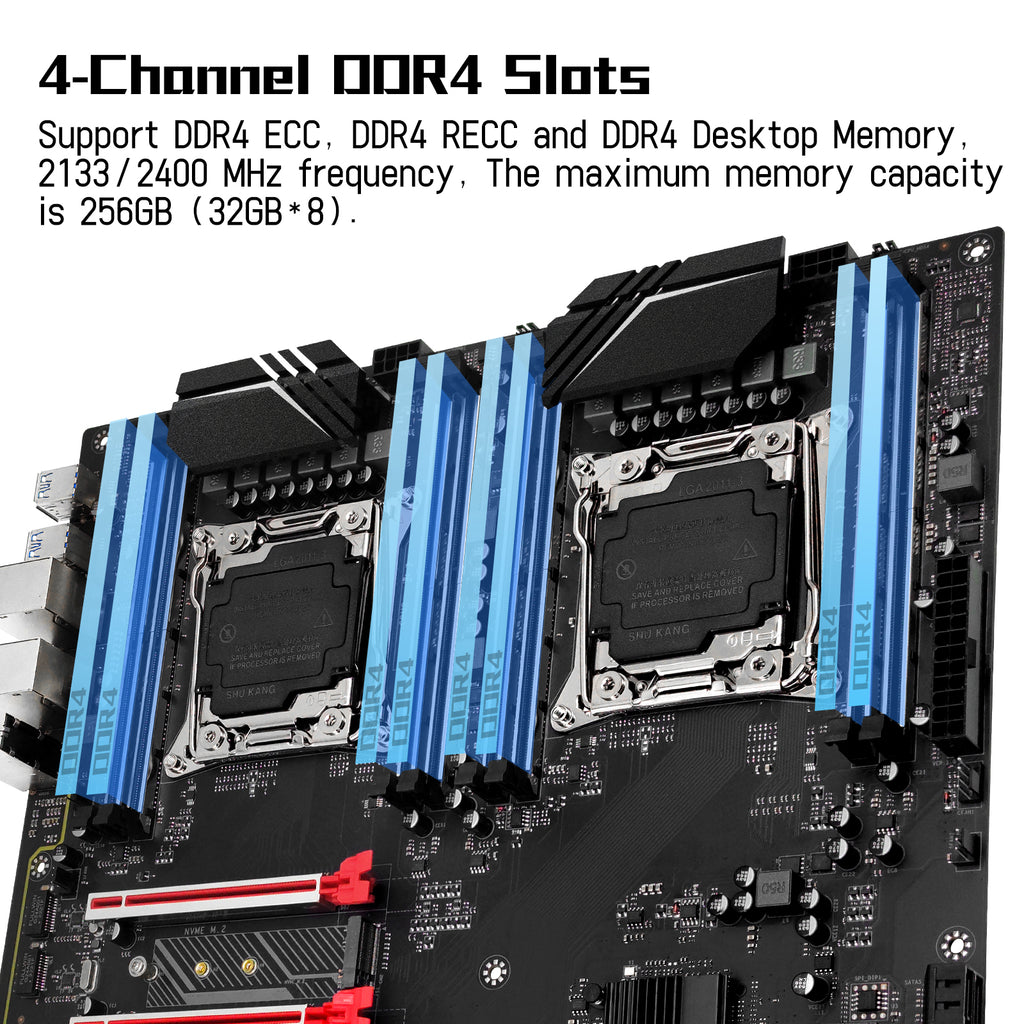

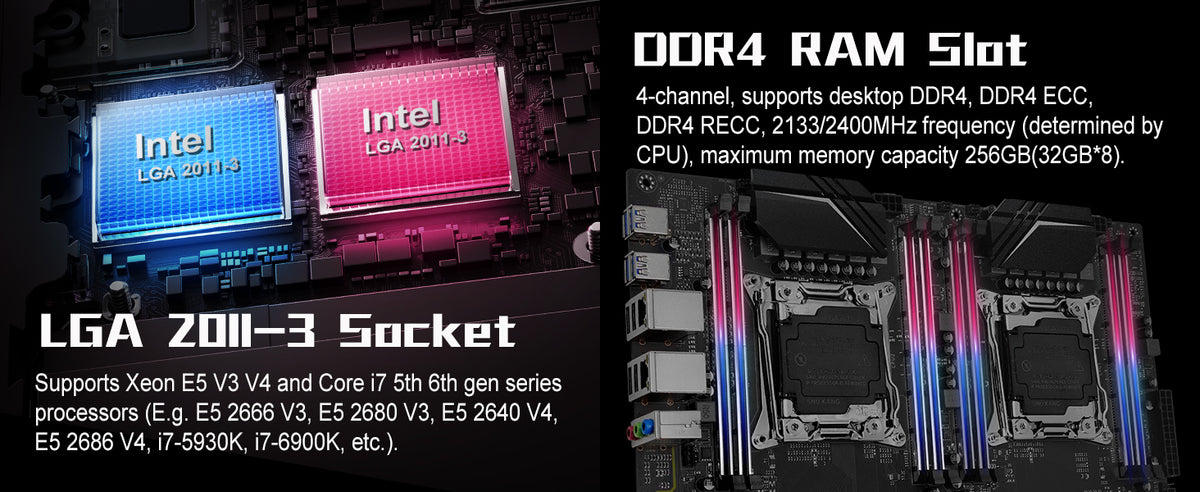

DDR4 4-channel memory slot: The memory slot of the LGA 2011-3 motherboard is designed with four channels, which can install 8 memory. It supports effective frequencies of 2133/2400MHz, and the maximum capacity is 256GB. (Non-ECC memory is not compatible when using E5 V4 series processors)

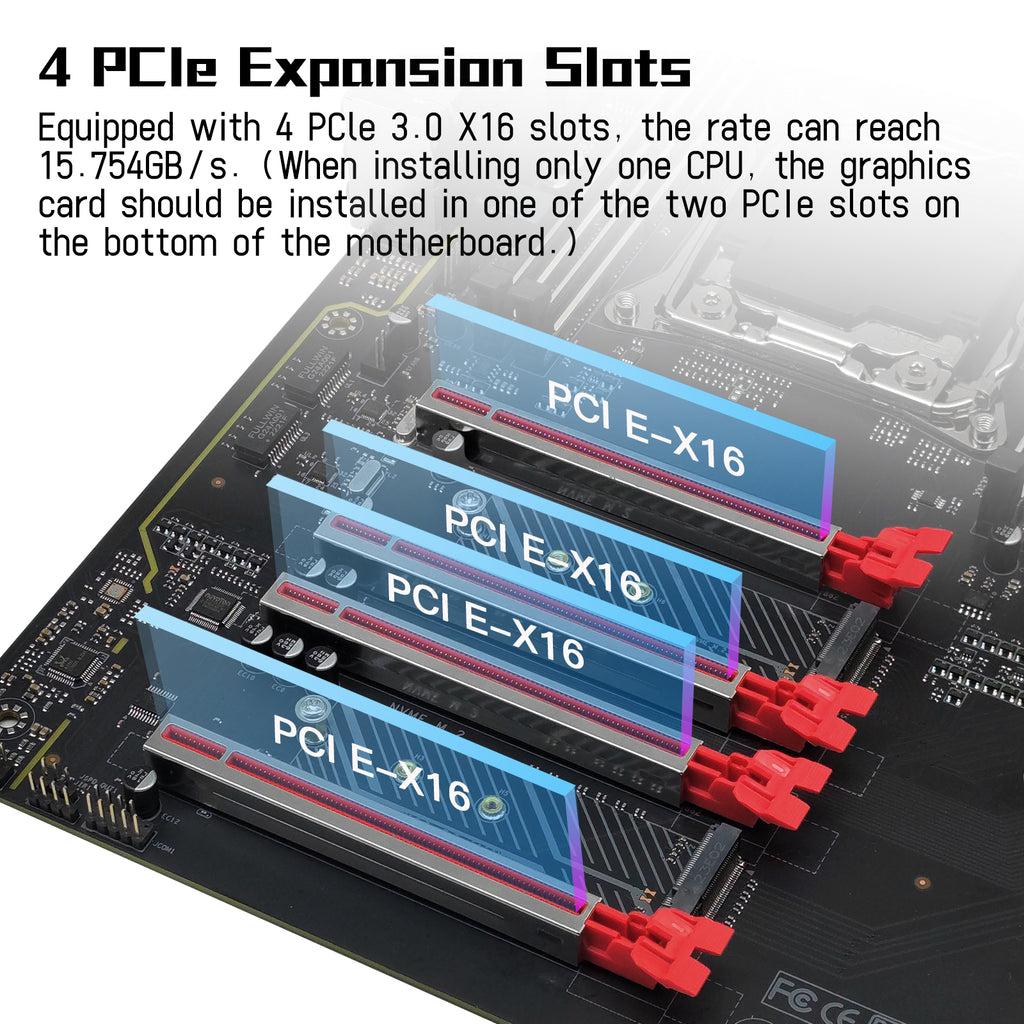

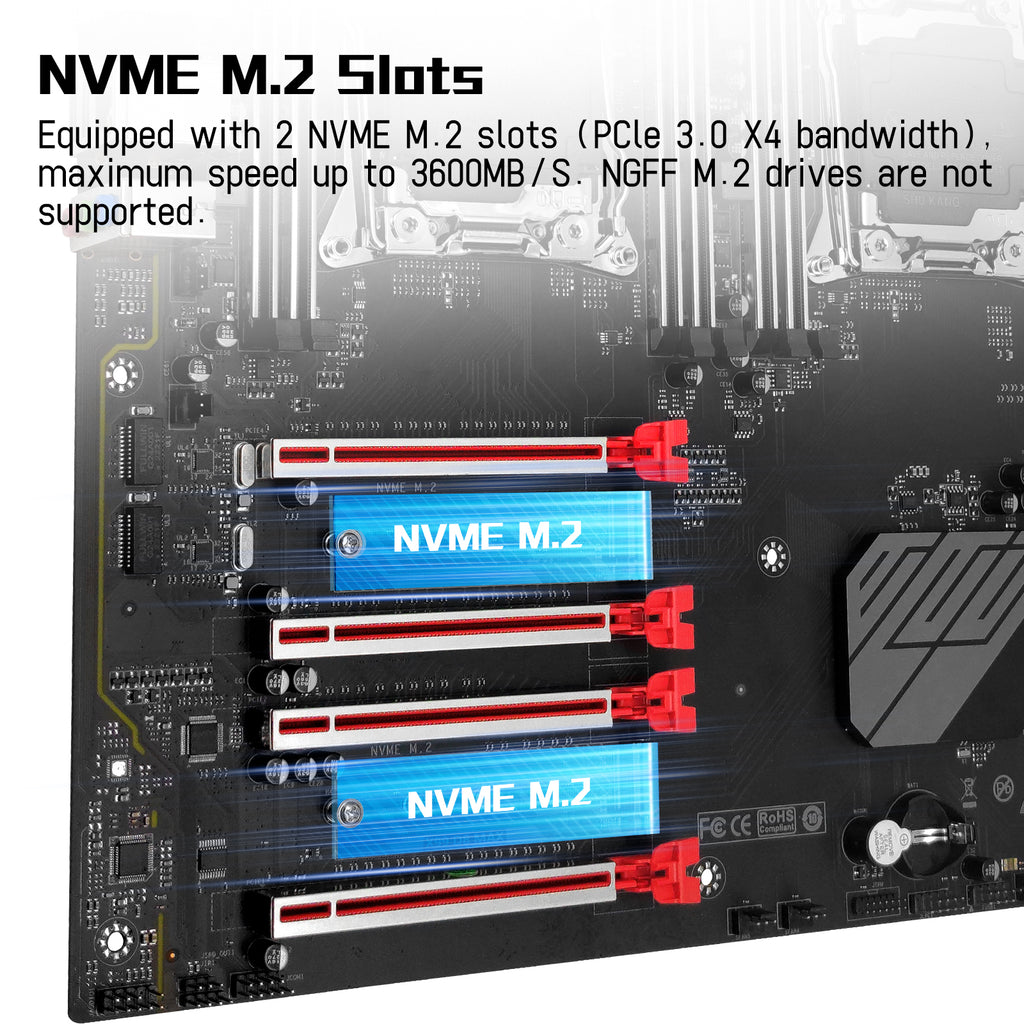

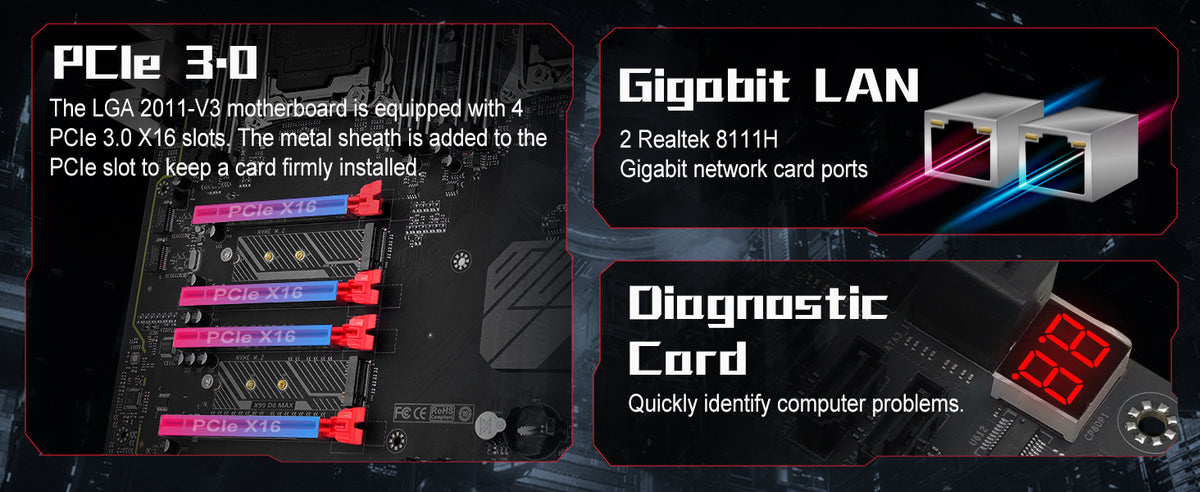

PCIe 3.0 protocol standard: Equipped with 4 PCIe 3.0 X16 graphics card slots (with steel case). The transfer rate can reach 15.754 GB/s using one graphics card, and the performance can be improved by at least 50% by using two graphics cards. Equipped with dual M.2 hard disk slots, it can achieve fast reading even if multiple programs are running

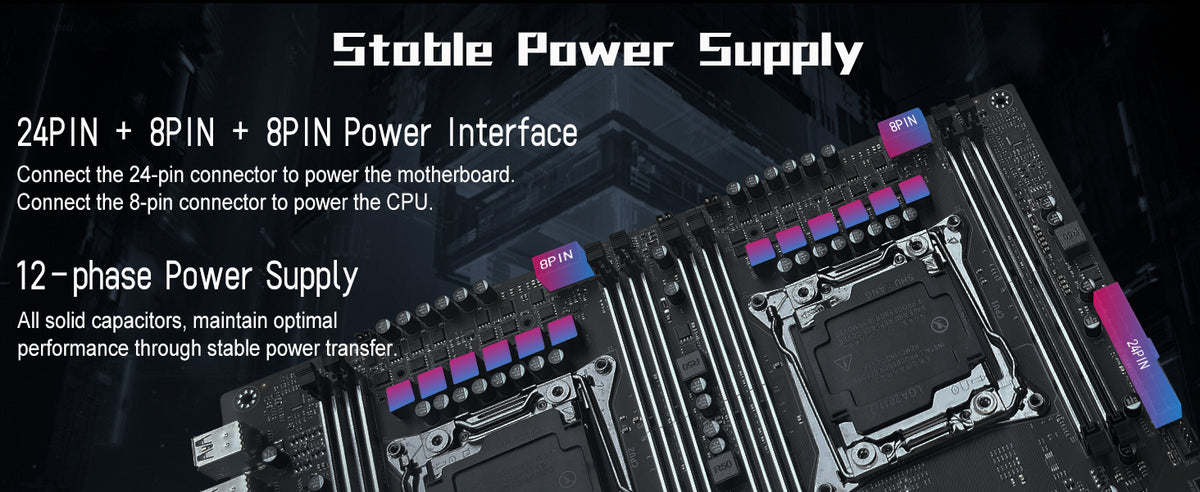

Stable power supply: use 24+8+8pin standard power supply interface (need to use a dedicated power supply for dual server motherboards), 12 (CPU) + 4 (memory) + 1 (C612 chip) phase power supply. Precise modularization provides good heat dissipation and makes the program run more stably

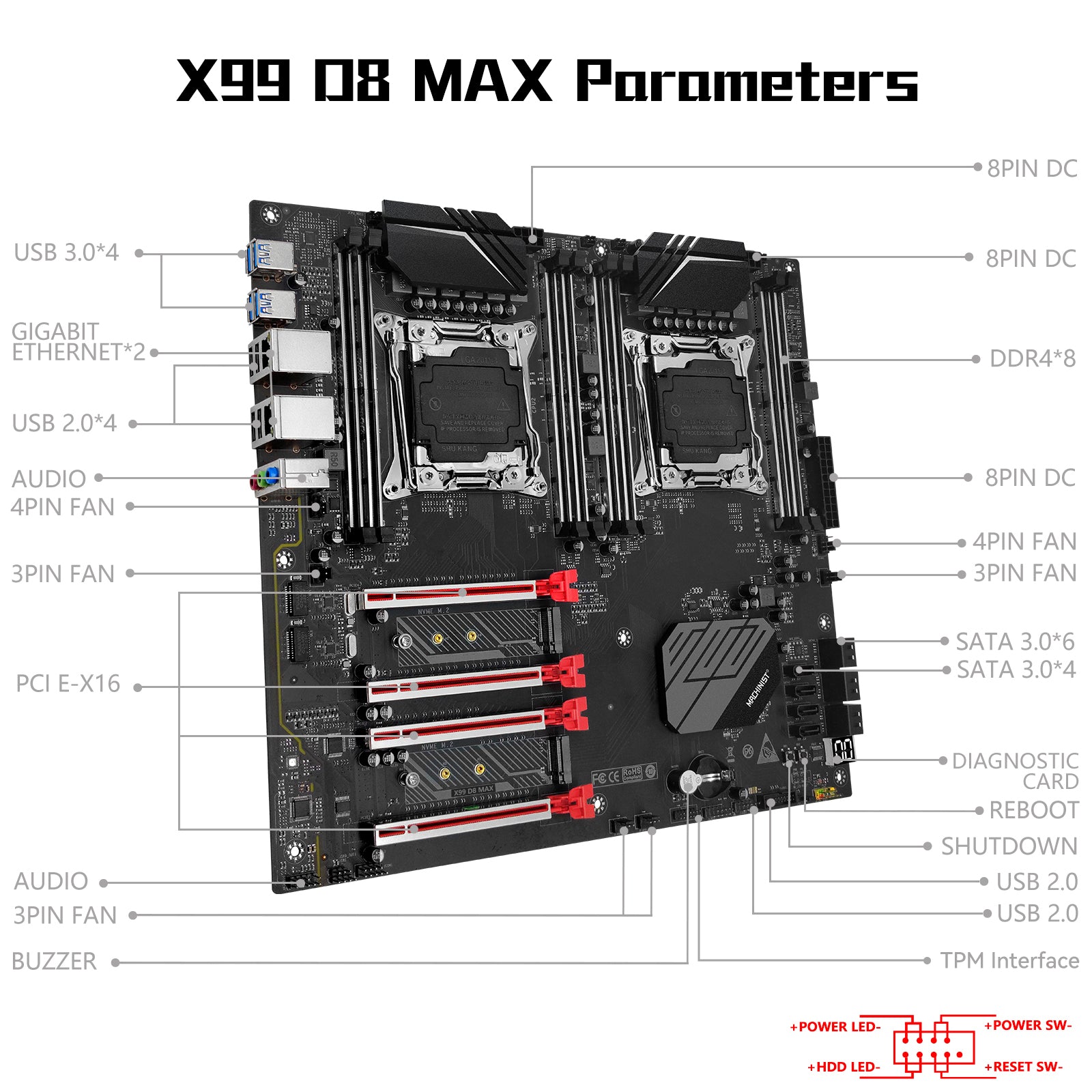

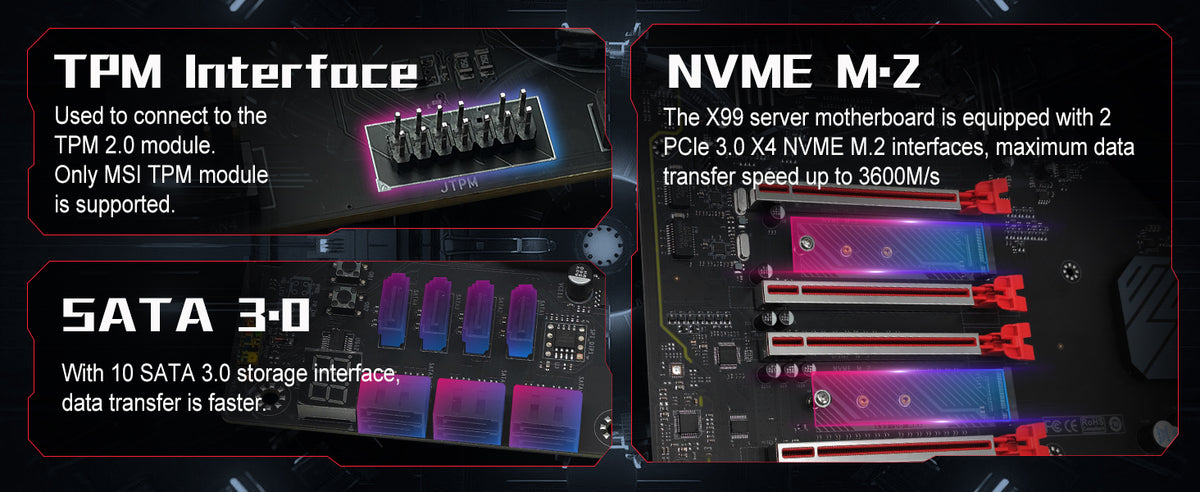

Strong expandability: The X99 motherboard is equipped with multiple expansion interfaces to ensure that the motherboard has more room for improvement. These include 4*USB 3.0 ports, 4*USB 2.0 ports, 10*SATA 3.0 ports, 4*3pin sys fan, 2*4pin CPU fan. Besides, dual network ports allow your computer to do more things

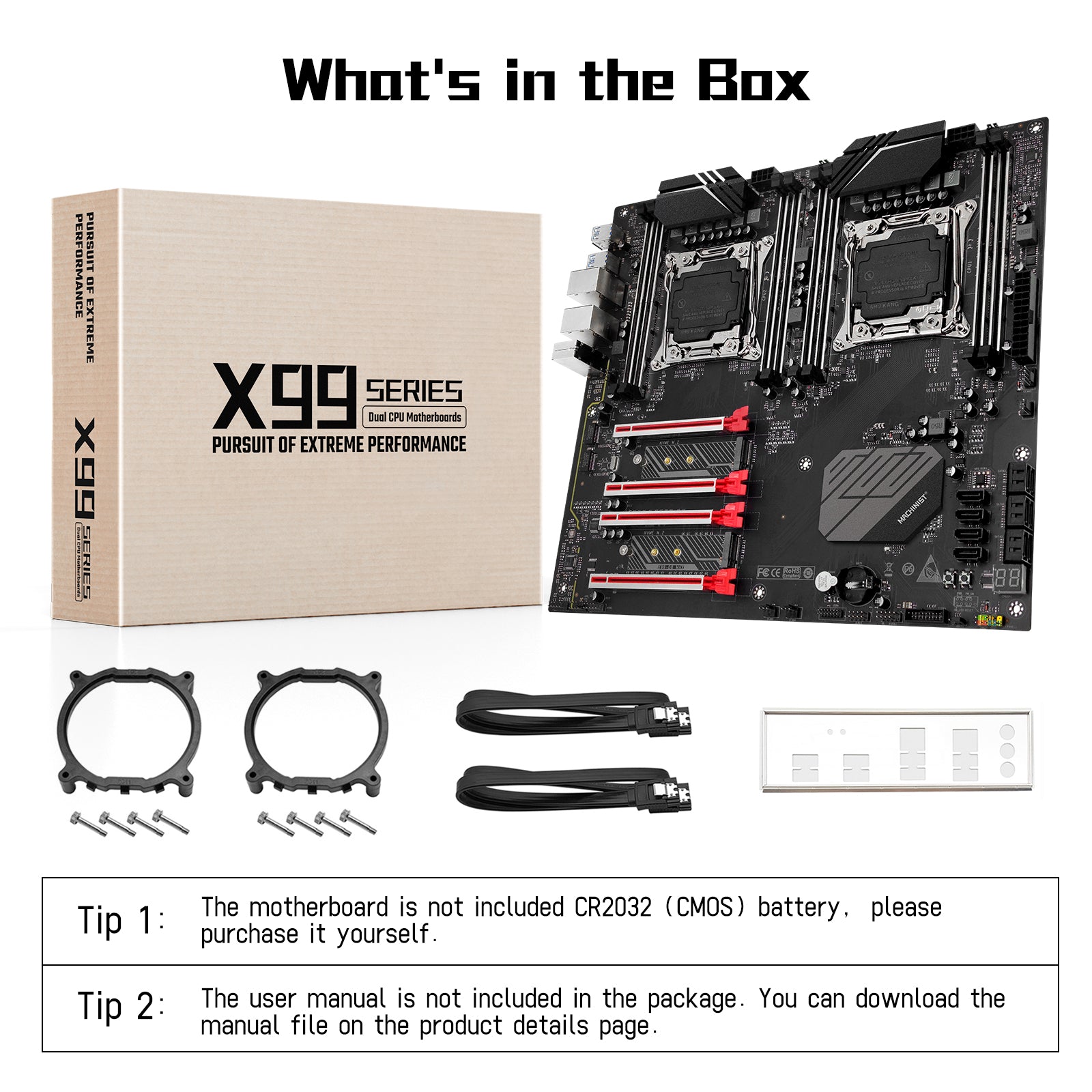

Tips: The package includes: 2*CPU fan bracket, 2*SATA cable, 1*I/O baffle, 1*motherboard. IMPORTANT: The package does not contain a user manual, please download the manual file from the bottom of the product description page or we can help you get it. The CR2032 battery on the motherboard has been removed. It is not included in the package, please purchase it yourself
FAQs
Where can I download the driver
You can download the driver through one of the following links:
https://www.drivethelife.com/
https://www.drivermax.com/
The computer won't power on and the fans don't spin
1. Some motherboards won't boot after removing the CMOS battery. Reinstall the CMOS battery and discharge it (clear CMOS) to resolve.
2. Ask the customer for their CPU model to verify compatibility.
3. Verify power connections: Ensure the motherboard power connector and CPU power connector are securely seated. Check if the case power switch is turned on.
4. Confirm the case power-on cable is properly connected.
5. Test with a known-good power supply to isolate potential issues.
6. Remove all peripherals (graphics card, hard drives, USB devices, etc.) before powering on. (For troubleshooting the case switch, directly short the switch pins with a metal object to bypass the switch mechanism.)
7. Replace the CPU.
No display (fans spin but keyboard lights remain unresponsive when pressing Caps Lock)

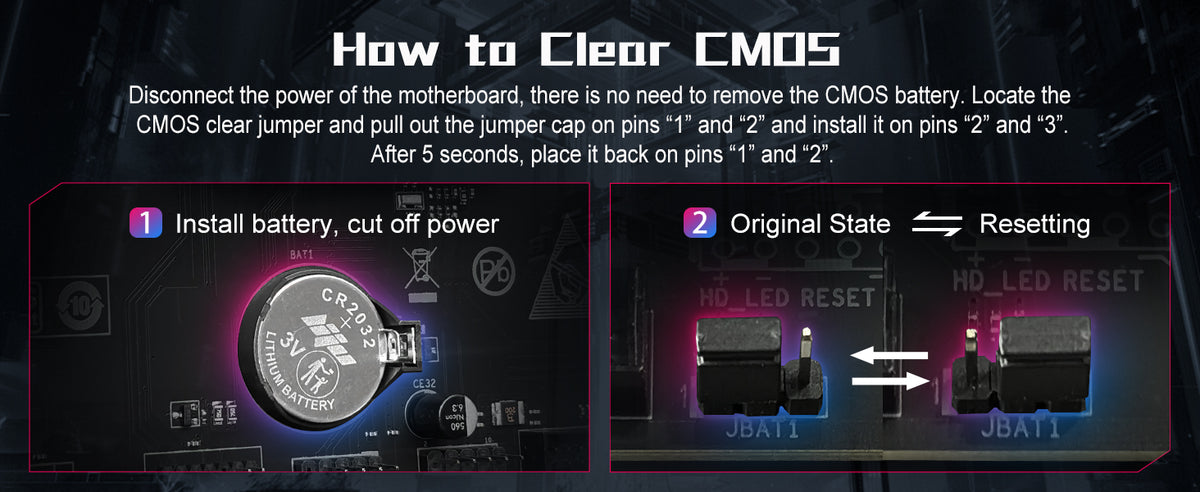

1. Reset BIOS/CMOS
2. Verify motherboard power supply and CPU power connector are properly seated
3. Check memory compatibility and correct installation position
4. Verify CPU compatibility
5. Replace CPU to determine if it is faulty
6. Replace memory to determine if it is faulty
No display (fans are spinning and the Caps Lock indicator lights up when pressing Caps Lock)
1. Verify monitor is powered on
2. Ensure display cable is securely connected (DP, HDMI, DVI, VGA)
3. If using integrated graphics (no discrete GPU installed), confirm CPU includes integrated graphics (e.g., CPUs with “F” suffix or Intel Xeon series lack integrated graphics; discrete GPU required for normal operation)
4. Verify the display cable is connected to the correct port: plug into the motherboard display port if no discrete GPU is installed; connect to the GPU's display port if a discrete GPU is present.
5. Replace the display cable to rule out cable issues.
6. Replace the graphics card to determine if the monitor is functioning properly.
Press the power button, the fan spins once, then immediately shuts off. Or repeated reboots
1. Reset the BIOS/CMOS.
2. Verify CPU compatibility and ensure the CPU is functioning properly.
3. Check memory compatibility and confirm the memory is operating correctly.
4. Disconnect the graphics card, hard drive, USB devices, and other peripherals. Power on the system to see if the issue persists.
Computer blue screen or crash
1. Verify proper cooling: Ensure the CPU cooler fan is spinning, the cooler base is tightly seated against the CPU, and thermal paste is applied.
2. Replace the CPU.
3. Replace the memory.
4. Replace the hard drive.
5. Replace the operating system.
6. Replace the power supply.
