MACHINIST B450 Motherboard for AMD AM4 Socket Ryzen 1-5th gen CPUs DDR4

$67.99 USD

$67.99 USD $99.99 USD

MACHINIST B450 Motherboard for AMD AM4 Socket Ryzen 1-5th gen CPUs DDR4

Name: MACHINIST B450 Motherboard for AMD AM4 Socket Ryzen 1-5th gen CPUs DDR4
Brand: MACHINIST
SKU: B450
Price: 67.99 USD
Availability: InStock

$67.99 USD

$67.99 USD $99.99 USD

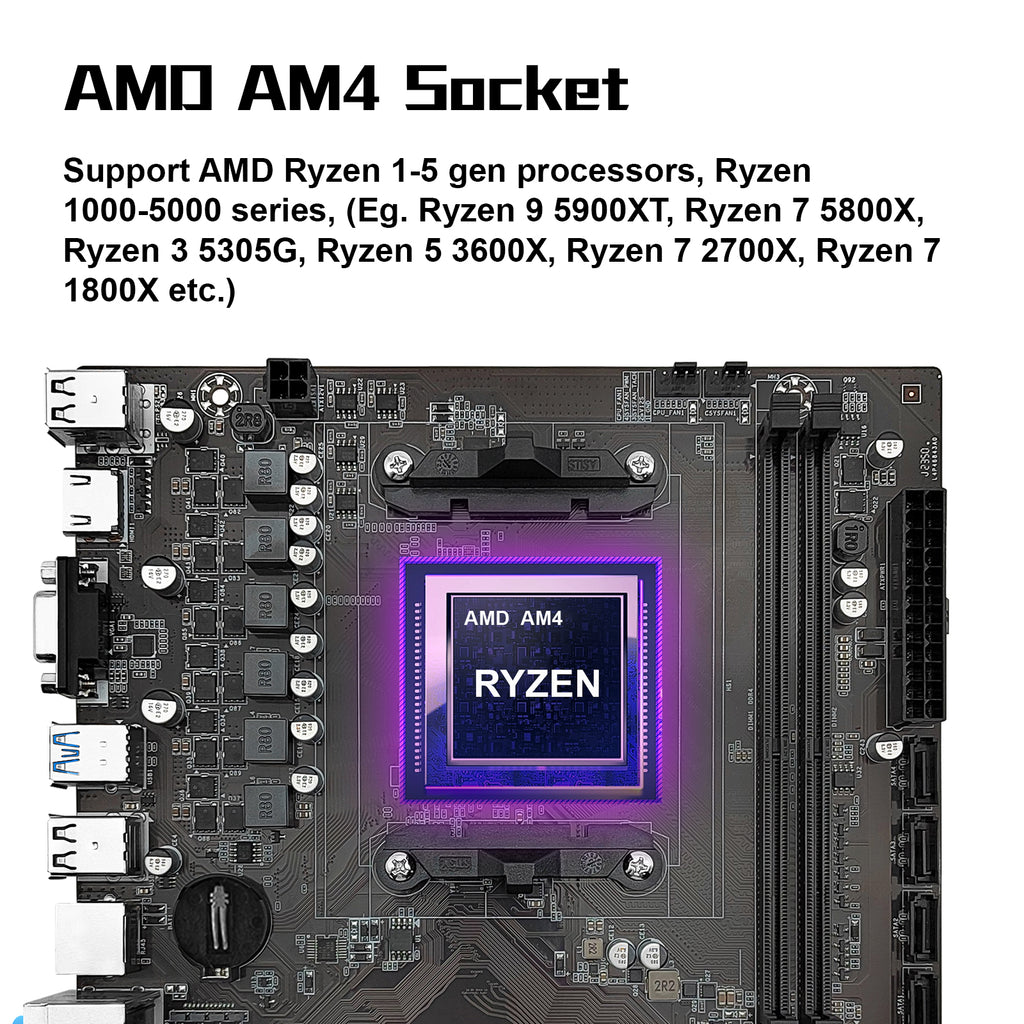

AMD AM4 Socket: Support AMD Ryzen 1-5 gen processors (Eg. Ryzen 9 5900XT, Ryzen 7 5800X, Ryzen 3 5305G, Ryzen 5 3600X, Ryzen 7 2700X, Ryzen 7 1800X etc.)

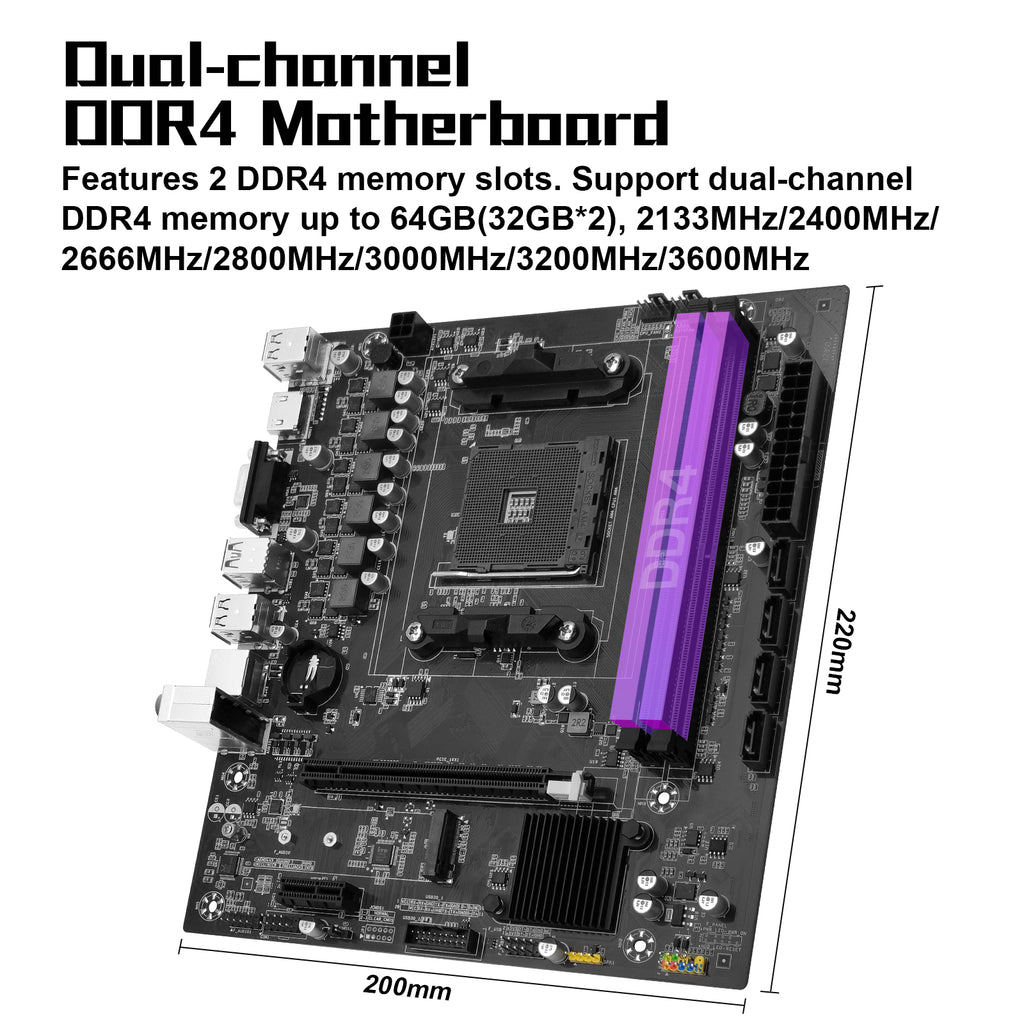

Dual-channel DDR4: 2 DDR4 non-ECC desktop memory slots, support effective frequencies of 2133MHz/2400MHz/2666MHz/2800MHz/3000MHz/3200MHz/3600MHz, and a maximum capacity of 64GB (32GB*2)
VGA and HDMI-compatible Interface: Support 1080P high-definition video output without a graphics card. Note: To use these two interfaces, your CPU needs to support integrated graphics

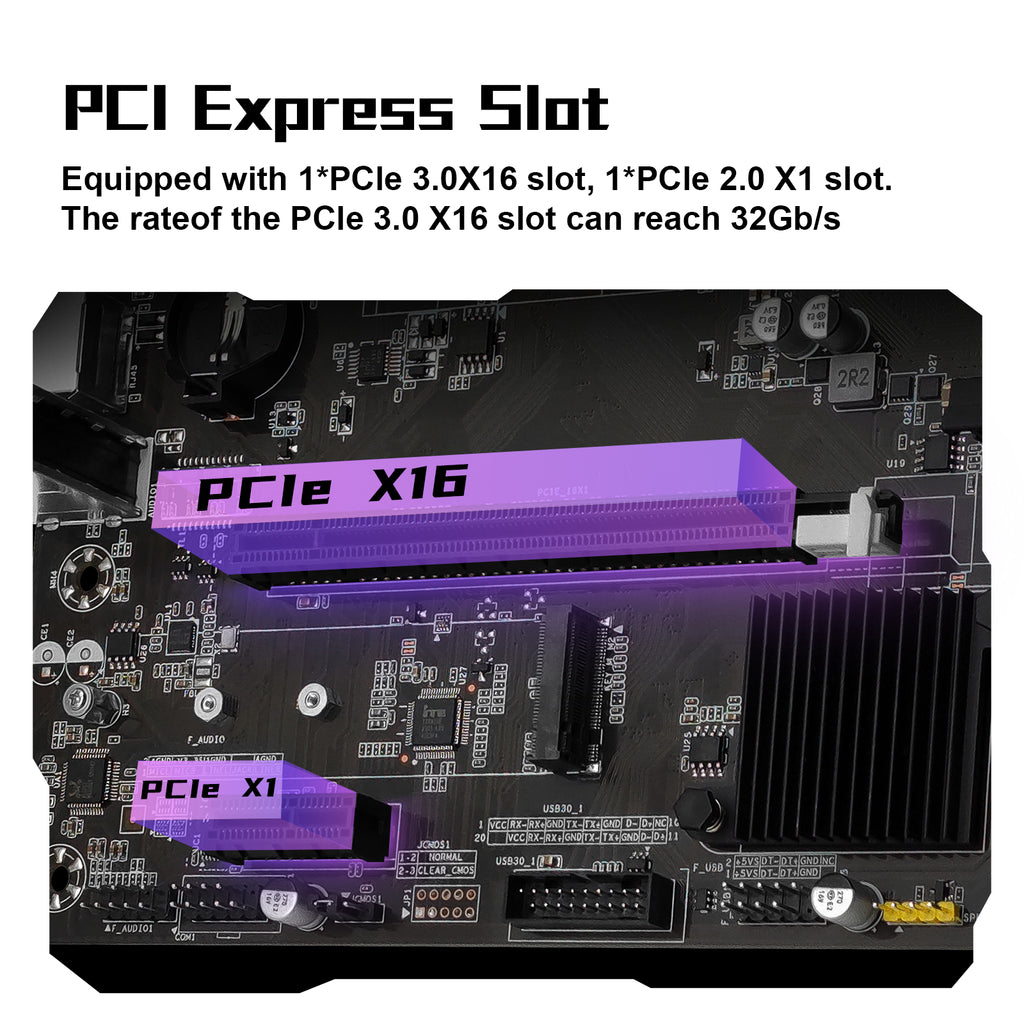

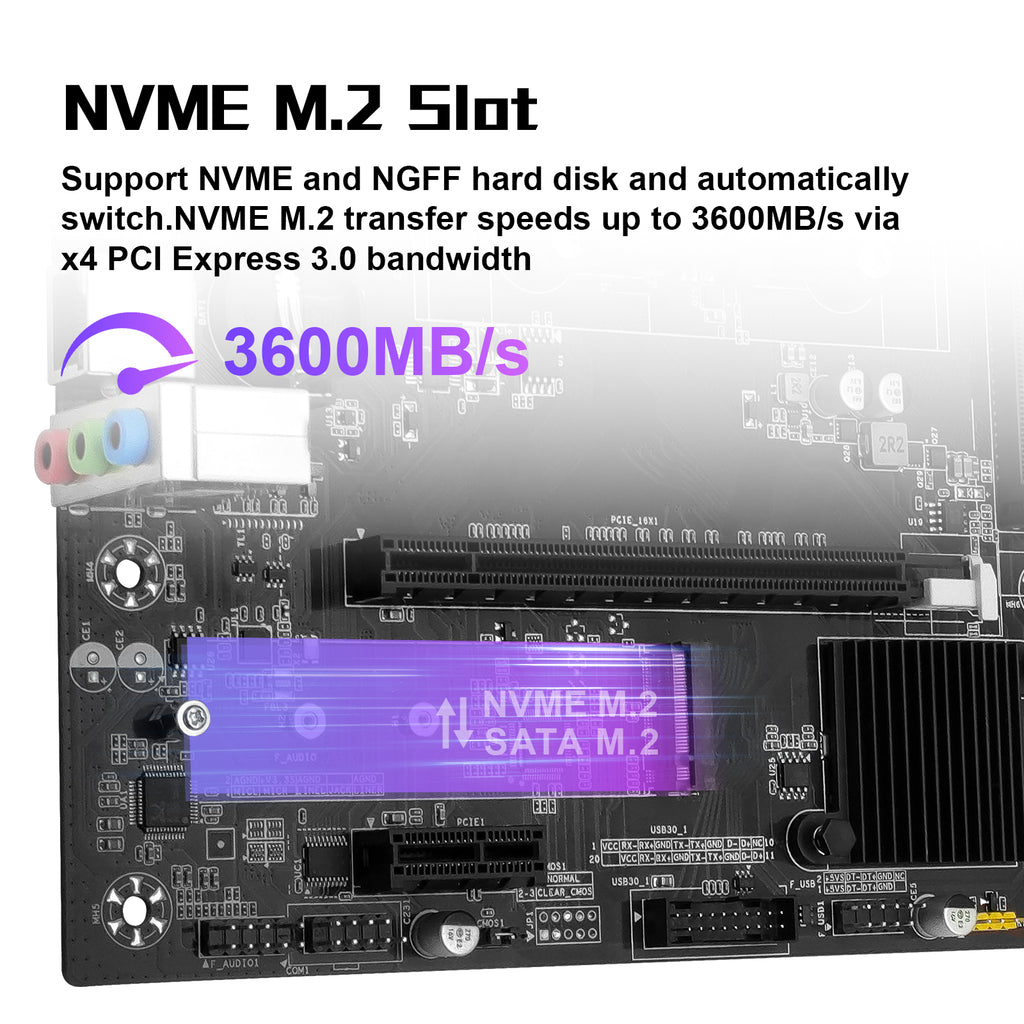

Extension Interface: The AM4 gaming motherboard is equipped with 1 PCIe 3.0 x16 slot, PCle 2.0 X1 slot, and 1 M.2 slot. The M.2 can be converted between NVME and NGFF
The package Includes: 1*B450 motherboard, 1*SATA cable, 1*I/O baffle. User manual is not included in the package, you can download the user manual file on the product description page. The CMOS battery is not included in the package. If you need to download the driver, it is recommended to download: Driver Talent, or use Win 10 system

FAQs

You can download the driver through one of the following links:
https://www.drivethelife.com/
https://www.drivermax.com/

1. Some motherboards won't boot after removing the CMOS battery. Reinstall the CMOS battery and discharge it (clear CMOS) to resolve.
2. Ask the customer for their CPU model to verify compatibility.
3. Verify power connections: Ensure the motherboard power connector and CPU power connector are securely seated. Check if the case power switch is turned on.
4. Confirm the case power-on cable is properly connected.
5. Test with a known-good power supply to isolate potential issues.
6. Remove all peripherals (graphics card, hard drives, USB devices, etc.) before powering on. (For troubleshooting the case switch, directly short the switch pins with a metal object to bypass the switch mechanism.)
7. Replace the CPU.

1. Reset BIOS/CMOS
2. Verify motherboard power supply and CPU power connector are properly seated
3. Check memory compatibility and correct installation position
4. Verify CPU compatibility
5. Replace CPU to determine if it is faulty
6. Replace memory to determine if it is faulty

1. Verify monitor is powered on
2. Ensure display cable is securely connected (DP, HDMI, DVI, VGA)
3. If using integrated graphics (no discrete GPU installed), confirm CPU includes integrated graphics (e.g., CPUs with “F” suffix or Intel Xeon series lack integrated graphics; discrete GPU required for normal operation)
4. Verify the display cable is connected to the correct port: plug into the motherboard display port if no discrete GPU is installed; connect to the GPU's display port if a discrete GPU is present.
5. Replace the display cable to rule out cable issues.
6. Replace the graphics card to determine if the monitor is functioning properly.

1. Reset the BIOS/CMOS.
2. Verify CPU compatibility and ensure the CPU is functioning properly.
3. Check memory compatibility and confirm the memory is operating correctly.
4. Disconnect the graphics card, hard drive, USB devices, and other peripherals. Power on the system to see if the issue persists.

1. Verify proper cooling: Ensure the CPU cooler fan is spinning, the cooler base is tightly seated against the CPU, and thermal paste is applied.
2. Replace the CPU.
3. Replace the memory.
4. Replace the hard drive.
5. Replace the operating system.
6. Replace the power supply.
