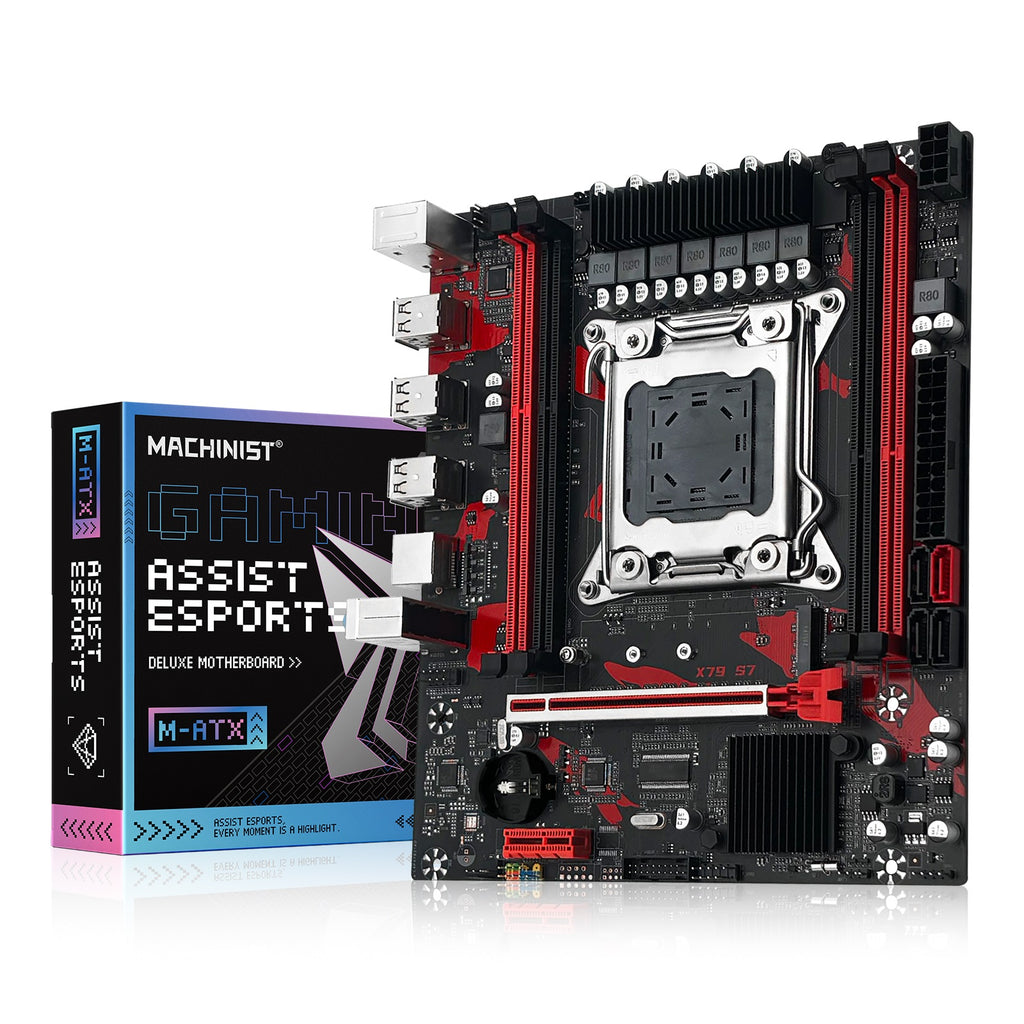

MACHINIST X79 S7 Motherboard Compatible with Intel LGA 2011 Xeon E5 DDR3

$40.99 USD

$40.99 USD $79.99 USD

MACHINIST X79 S7 Motherboard Compatible with Intel LGA 2011 Xeon E5 DDR3

Name: MACHINIST X79 S7 Motherboard Compatible with Intel LGA 2011 Xeon E5 DDR3
Brand: MACHINIST
SKU: X79 S7
Price: 40.99 USD
Availability: InStock

$40.99 USD

$40.99 USD $79.99 USD

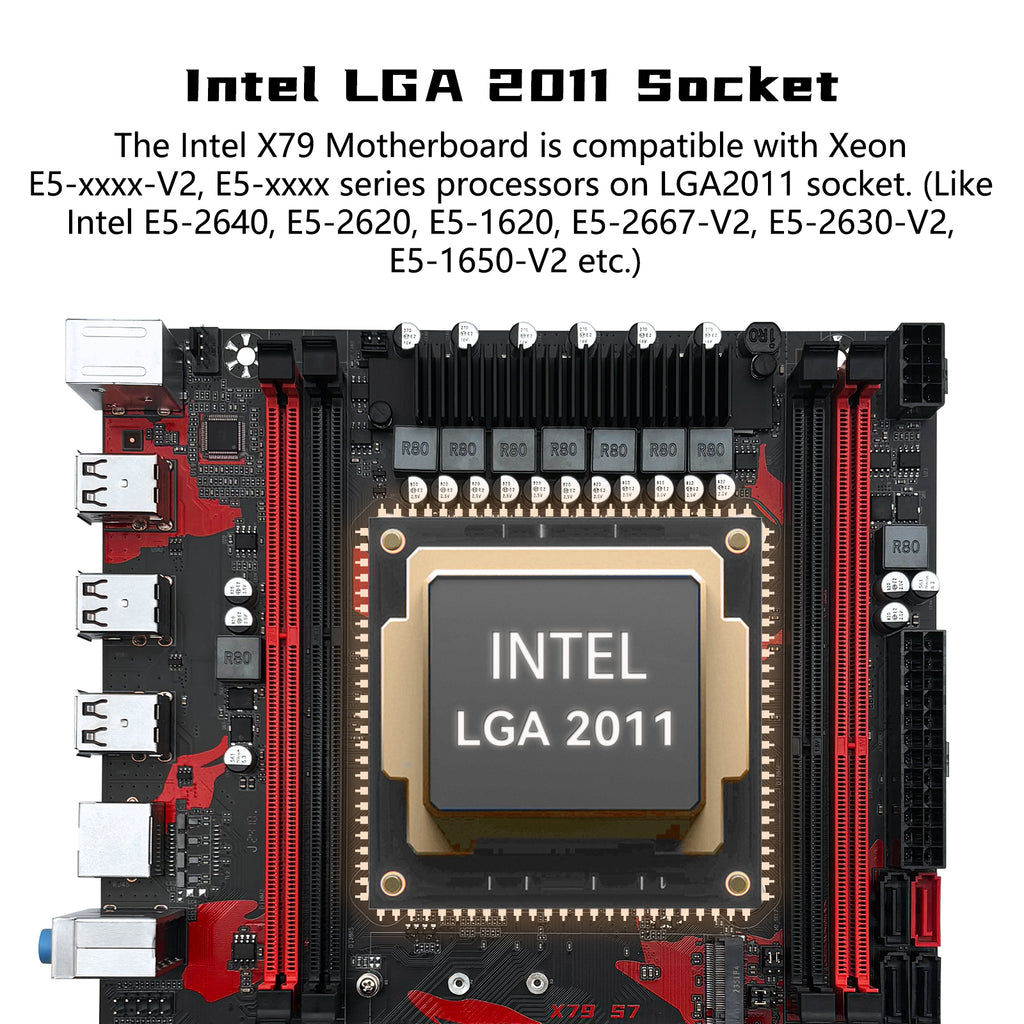

LGA 2011 Socket: The X79 Server motherboard support Intel LGA2011 socket CPU processors (e.g. Intel Xeon E5 1620/1660/2603/2620/2667/2690, E5 1603 V2/ 2620 V2/26340 V2/2670 V2/2695 V2, etc.)

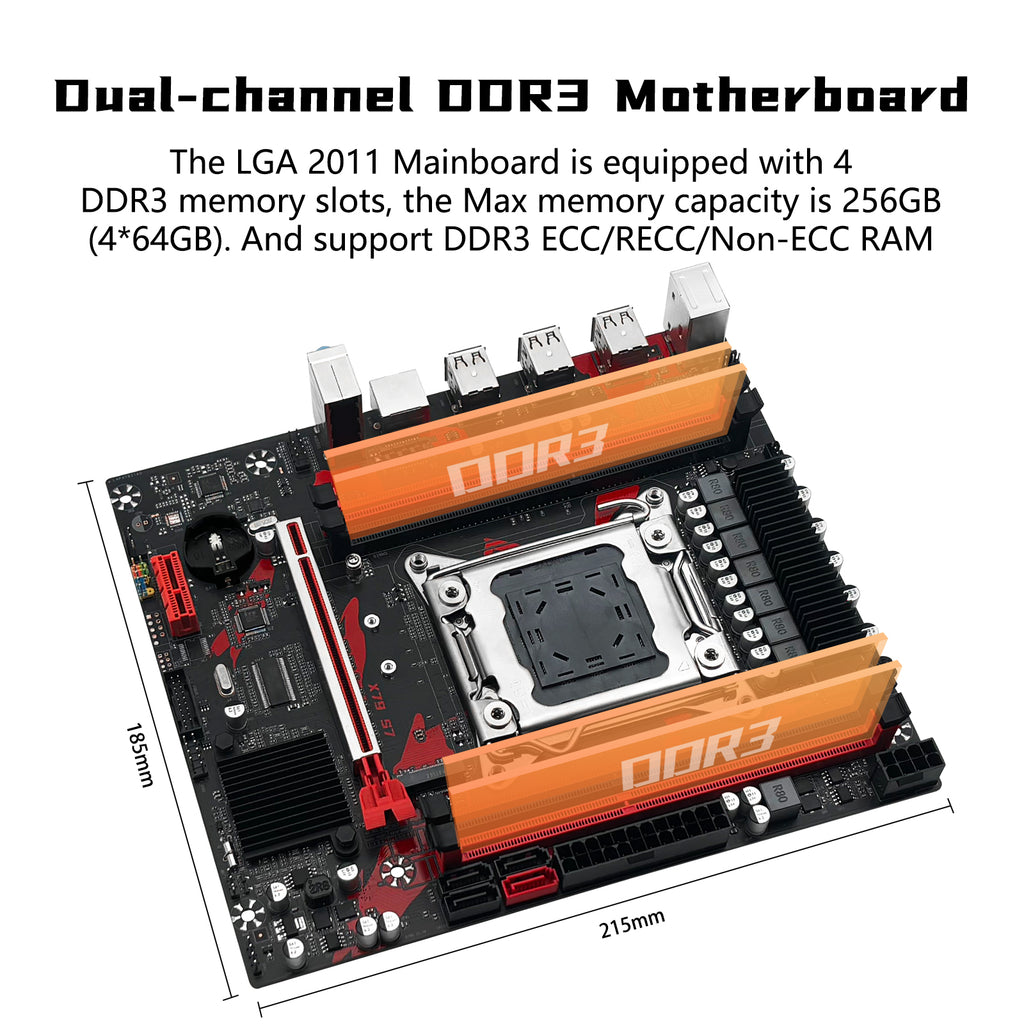

Dual-channel DDR3: The Intel LGA 2011 gaming motherboard supports DDR3 Desktop/ECC/RECC memory up to 256GB (4*64GB), and supports 1066/1333/1600Mhz

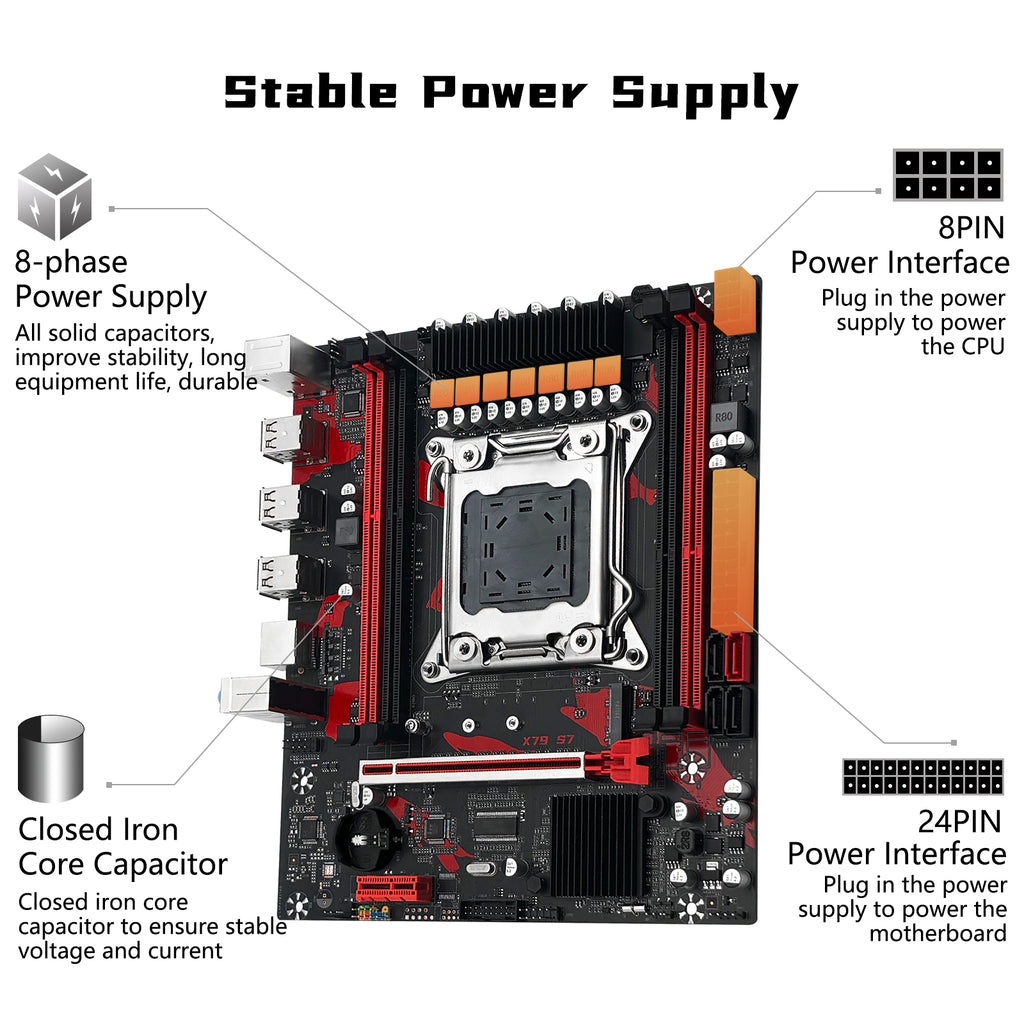

Stable Power Supply: 8-phase power supply, all-solid-state capacitor design, fine workmanship, professional stability. And the DDR3 mainboard is equipped with 24+8 pin power interface (please use a brand power supply of at least 500w)

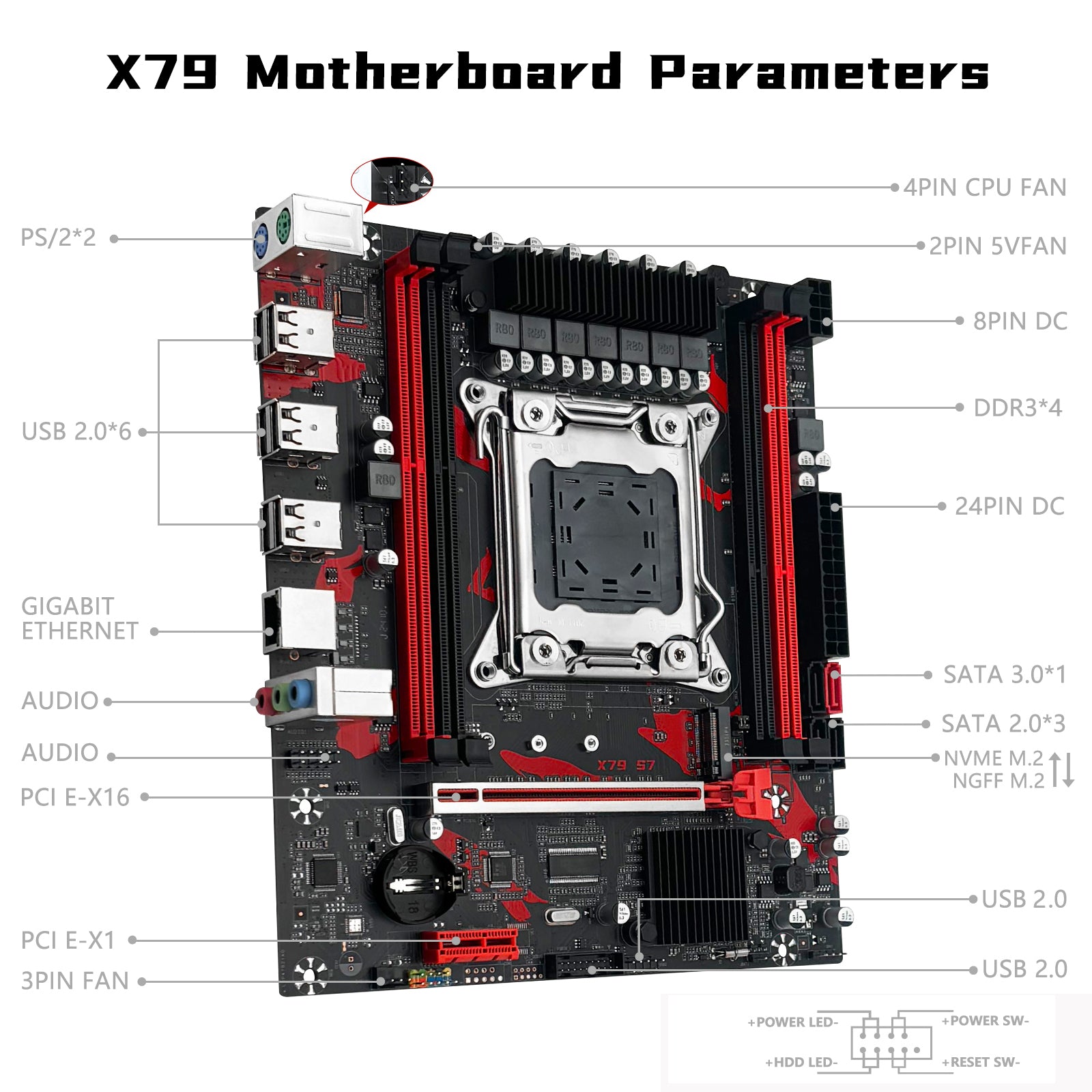

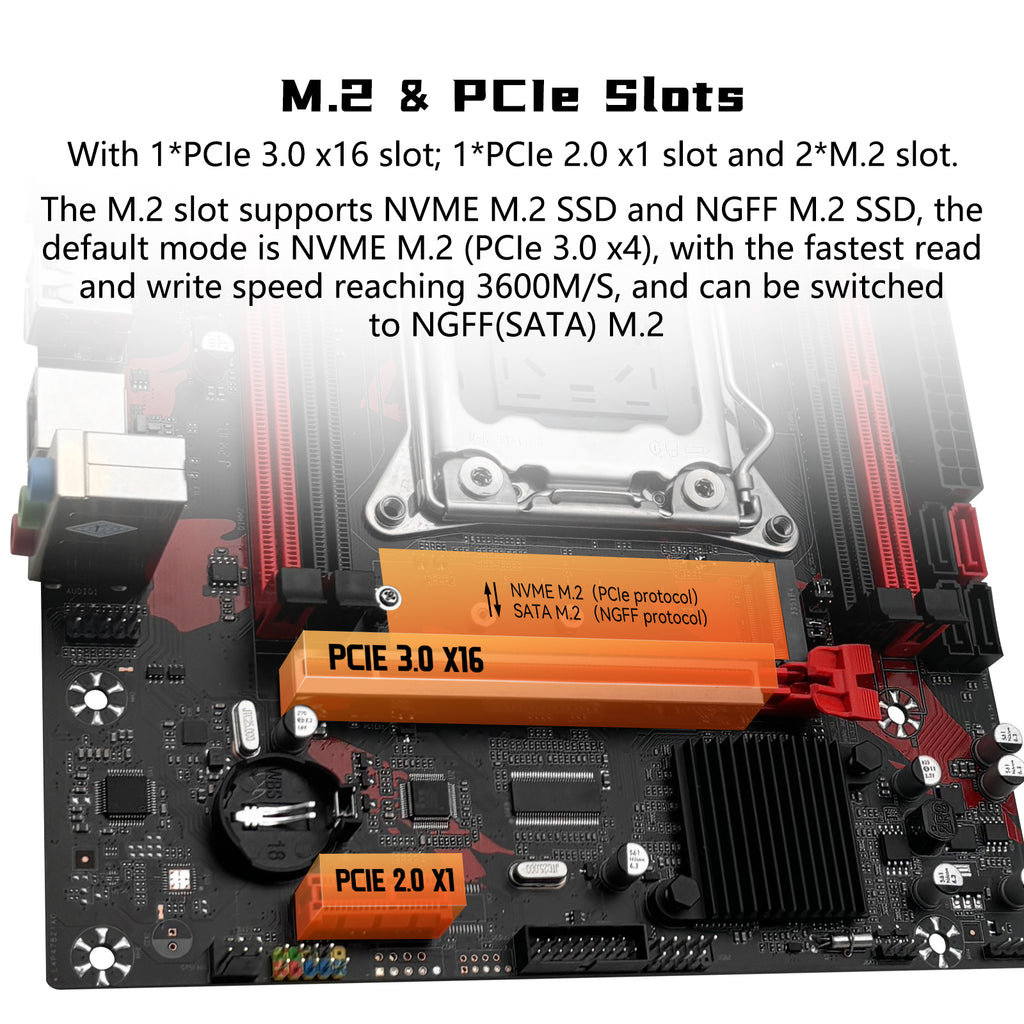

Rich Interfaces: The Micro ATX placa madre features RJ45 gigabit network interfaces, and the maximum network transmission rate can reach 1000bps/s. And with M.2 slots (support NVME SSD/NGFF SSD), PCIe 3.0 X16, PCIe 2.0 x1, SATA 3.0, SATA 2.0, USB 3.0, USB 2.0
Excellent Performance: The DDR3 computer motherboard uses Intel X79 chipset and 8-layer PCB material. And with Heat dissipation armor protection for strong heat dissipation, to ensure stable bus communication

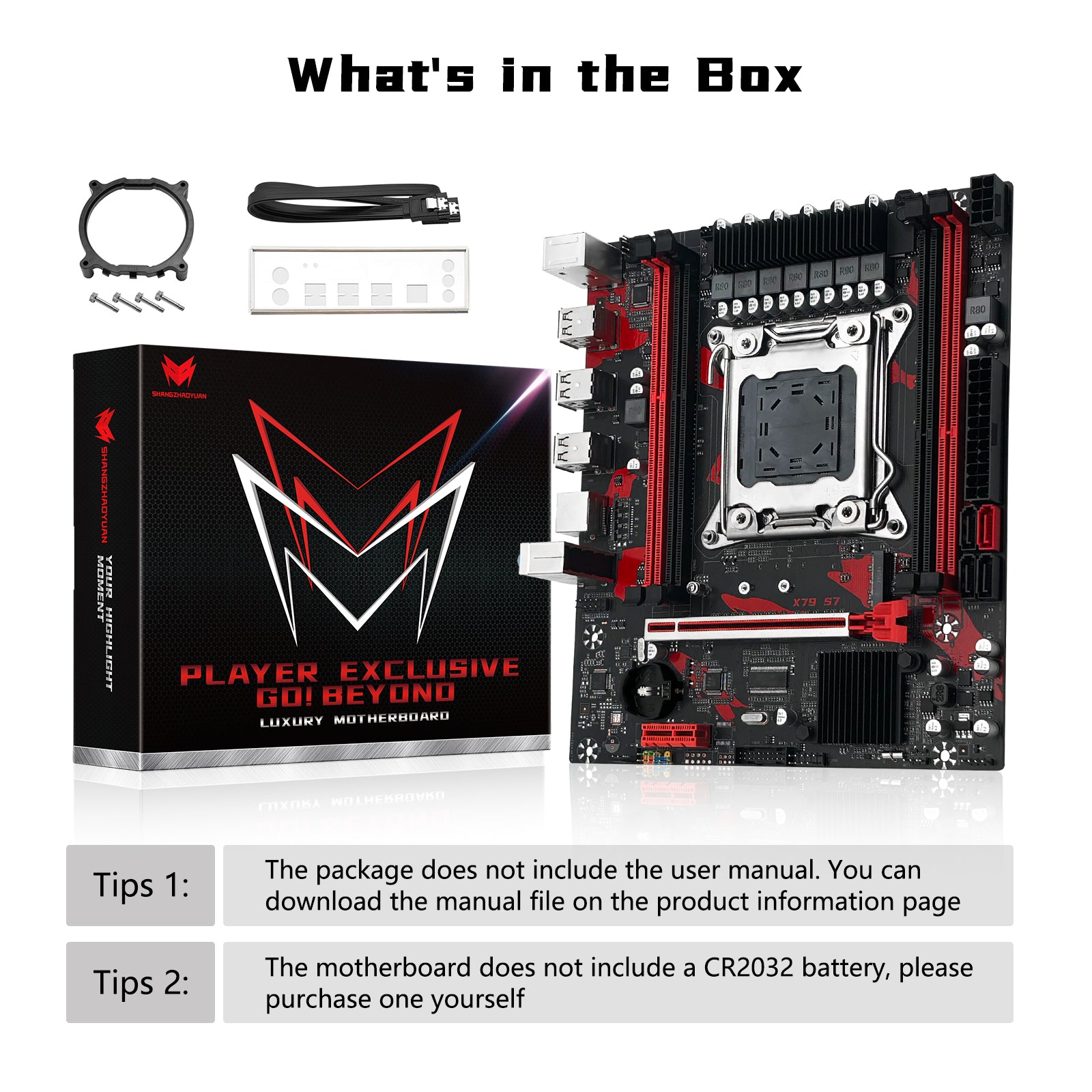

Package Lists: 1* X79 S7 mainboard, 1*SATA cable, 1*I/0 shield, 1*LGA2011 cooler bracket. IMPORTANT: The user manual for the motherboard is not included, Please ask us on Amazon to get the manual file if you need. And the motherboard does not include a CR2032 battery, please purchase one yourself

FAQs

You can download the driver through one of the following links:
https://www.drivethelife.com/
https://www.drivermax.com/

1. Some motherboards won't boot after removing the CMOS battery. Reinstall the CMOS battery and discharge it (clear CMOS) to resolve.
2. Ask the customer for their CPU model to verify compatibility.
3. Verify power connections: Ensure the motherboard power connector and CPU power connector are securely seated. Check if the case power switch is turned on.
4. Confirm the case power-on cable is properly connected.
5. Test with a known-good power supply to isolate potential issues.
6. Remove all peripherals (graphics card, hard drives, USB devices, etc.) before powering on. (For troubleshooting the case switch, directly short the switch pins with a metal object to bypass the switch mechanism.)
7. Replace the CPU.

1. Reset BIOS/CMOS
2. Verify motherboard power supply and CPU power connector are properly seated
3. Check memory compatibility and correct installation position
4. Verify CPU compatibility
5. Replace CPU to determine if it is faulty
6. Replace memory to determine if it is faulty

1. Verify monitor is powered on
2. Ensure display cable is securely connected (DP, HDMI, DVI, VGA)
3. If using integrated graphics (no discrete GPU installed), confirm CPU includes integrated graphics (e.g., CPUs with “F” suffix or Intel Xeon series lack integrated graphics; discrete GPU required for normal operation)
4. Verify the display cable is connected to the correct port: plug into the motherboard display port if no discrete GPU is installed; connect to the GPU's display port if a discrete GPU is present.
5. Replace the display cable to rule out cable issues.
6. Replace the graphics card to determine if the monitor is functioning properly.

1. Reset the BIOS/CMOS.
2. Verify CPU compatibility and ensure the CPU is functioning properly.
3. Check memory compatibility and confirm the memory is operating correctly.
4. Disconnect the graphics card, hard drive, USB devices, and other peripherals. Power on the system to see if the issue persists.

1. Verify proper cooling: Ensure the CPU cooler fan is spinning, the cooler base is tightly seated against the CPU, and thermal paste is applied.
2. Replace the CPU.
3. Replace the memory.
4. Replace the hard drive.
5. Replace the operating system.
6. Replace the power supply.
