MACHINIST B85M PRO LGA 1150 Motherboard for Intel 4th Gen Core i7 i5 i3 Micro-ATX DDR3
$70.99 USD
Sale price
$70.99 USD
Regular price
$99.99 USD
Skip to product information

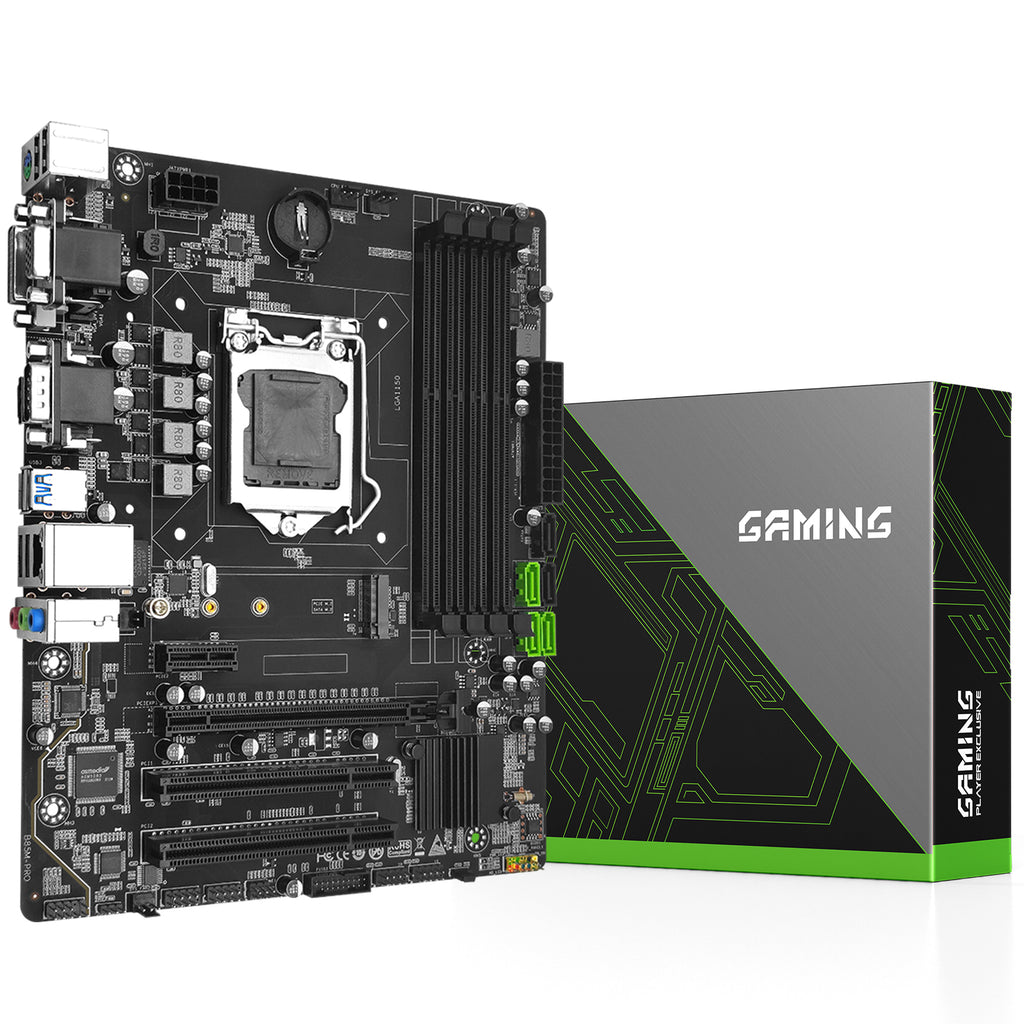

MACHINIST B85M PRO LGA 1150 Motherboard for Intel 4th Gen Core i7 i5 i3 Micro-ATX DDR3
$70.99 USD
Sale price
$70.99 USD
Regular price
$99.99 USD

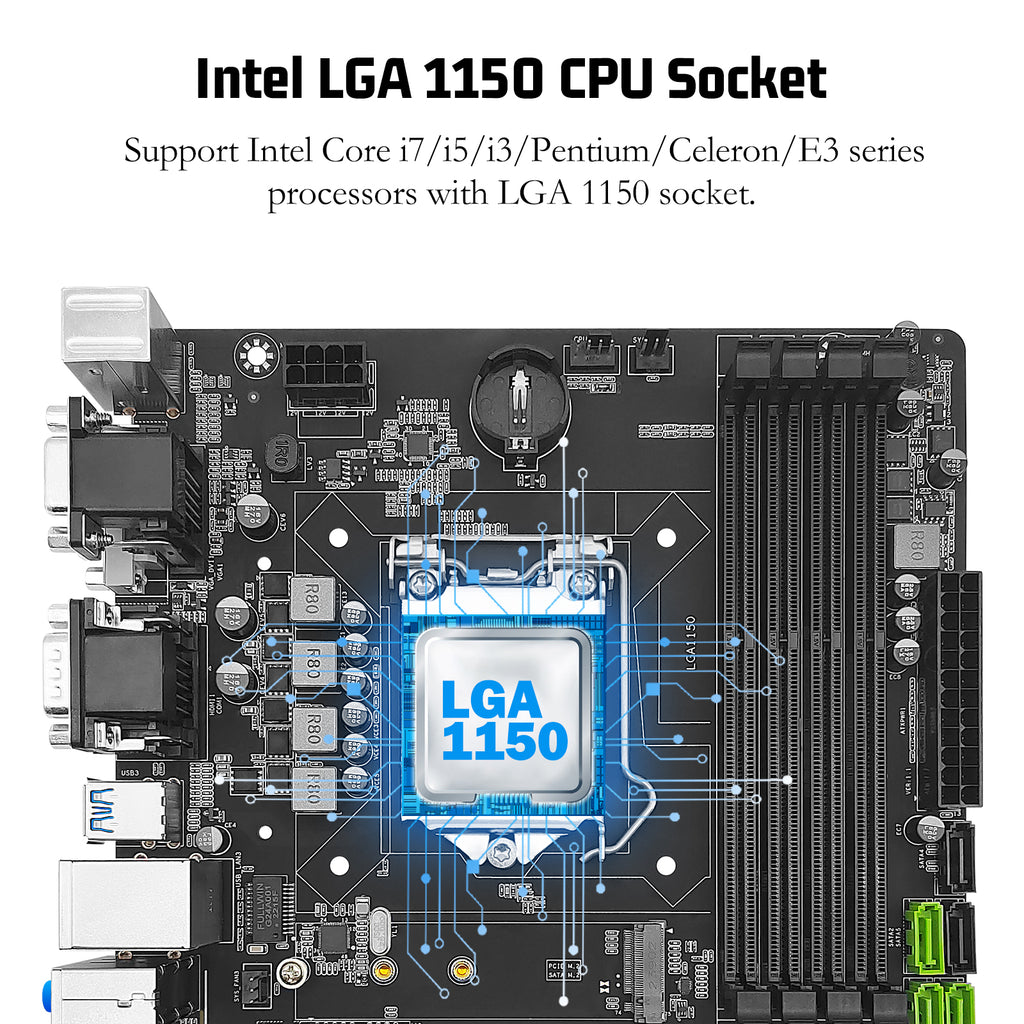

LGA 1150 Socket: The gaming motherboard supports Intel 4th gen processor (Core i7/i5/i3/Pentium/Celeron/E3 series) with LGA 1150 CPU socket, e.g. i5 4570, i5 4690k, i7 4790, i7 4790k, etc.

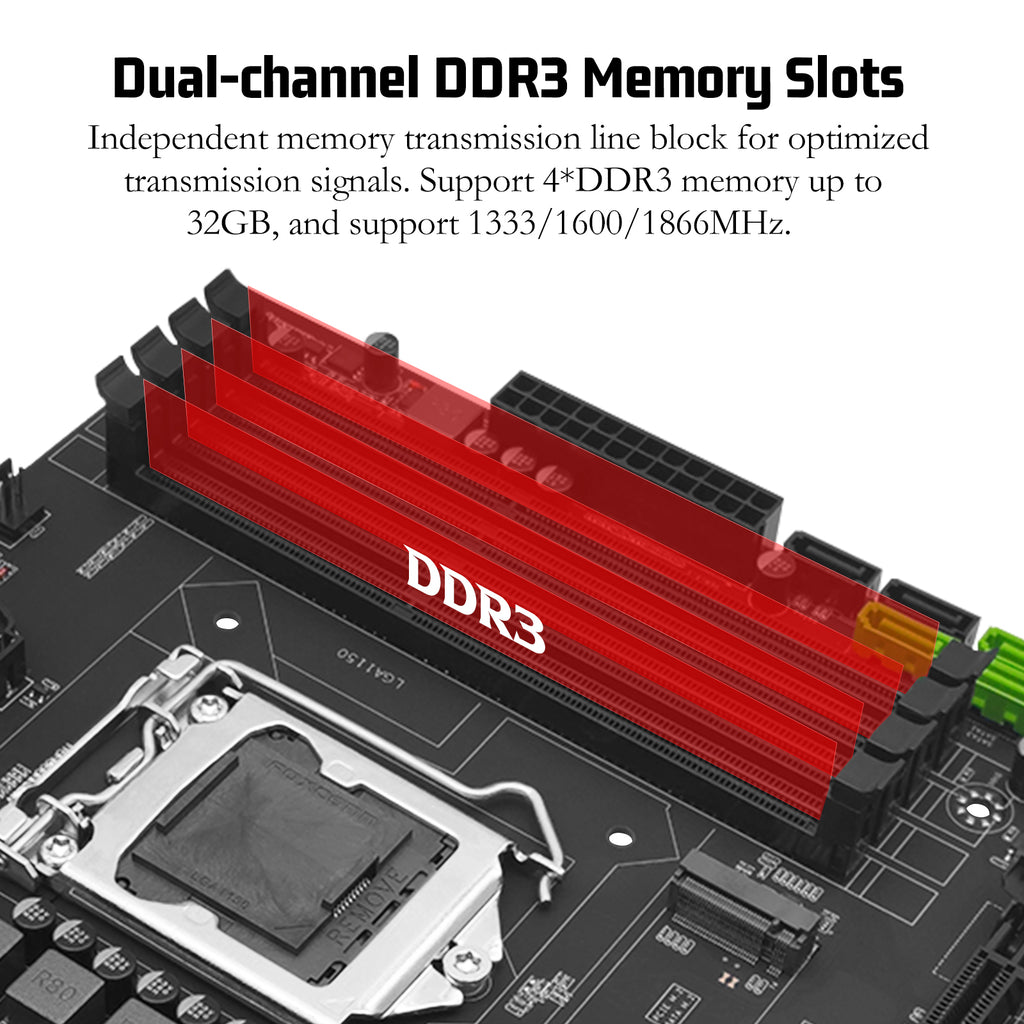

Dual-channel DDR3: The Intel LGA1150 motherboard supports dual-channel DDR3 desktop memory, 1333/1600/1866MHz frequency type, the maximum memory capacity is 32GB (4*8GB)

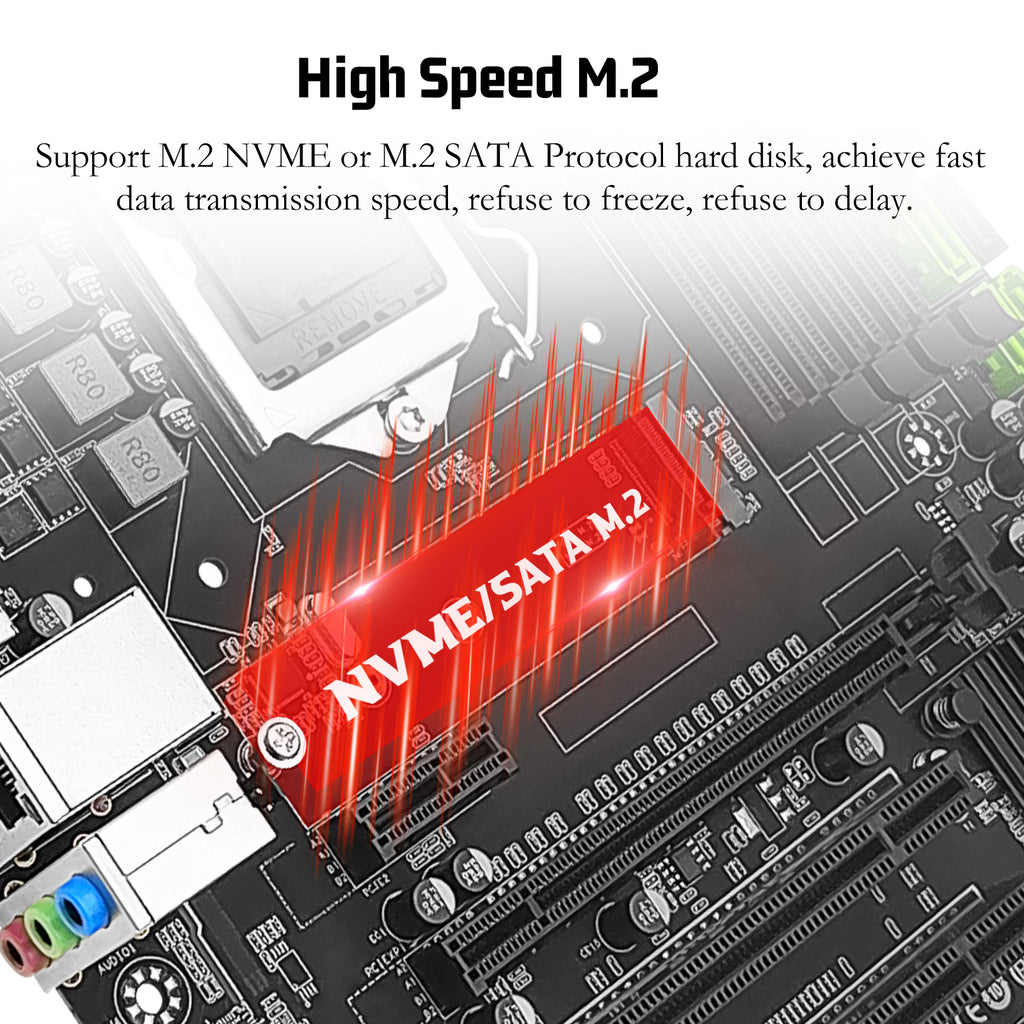

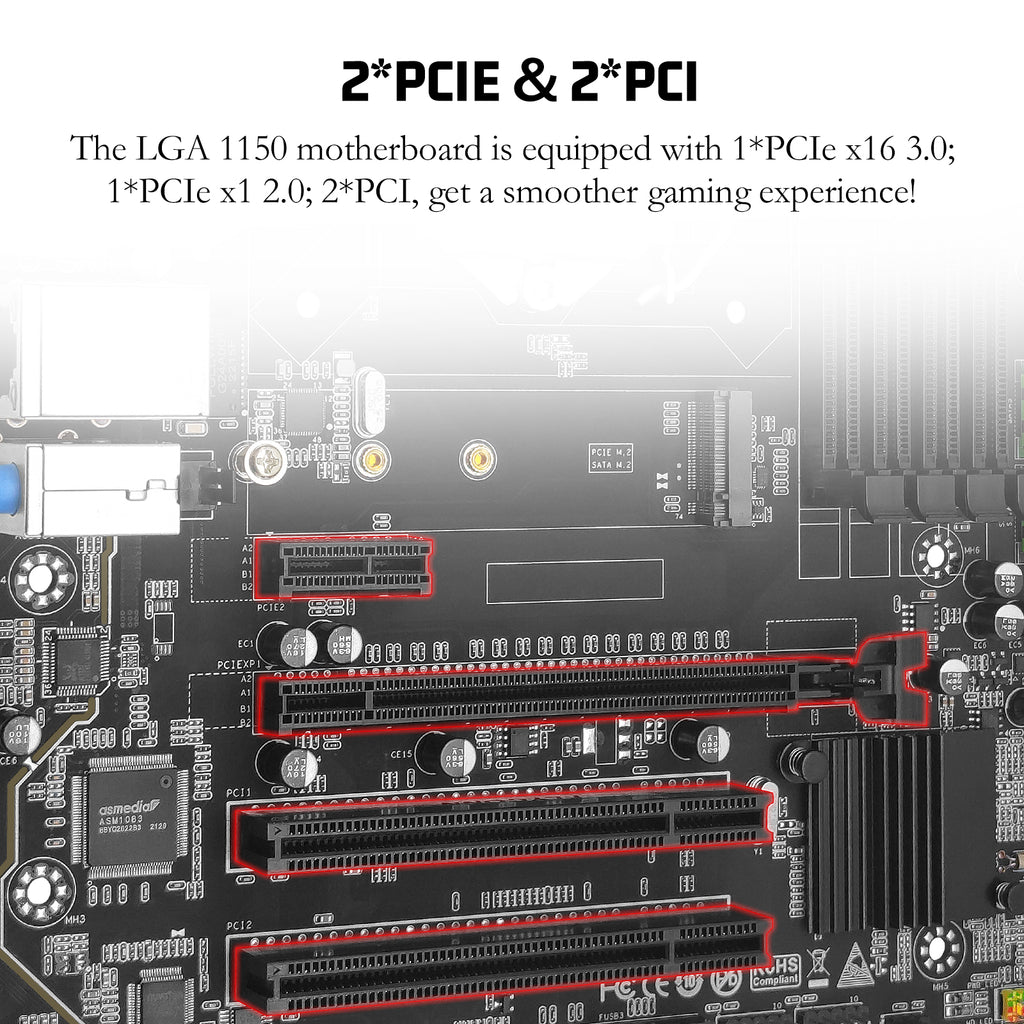

High-speed Interface: The computer motherboard supports M.2 protocol, NVME and SATA mode automatic switching. And it is equipped with 1 RJ45 gigabit network, 1 PCIe x16 3.0, 1 PCIe x1 2.0, 2 PCI, 3 SATA 3.0, and VGA, DVI, HDMI-compatible high-definition multimedia transmission interface

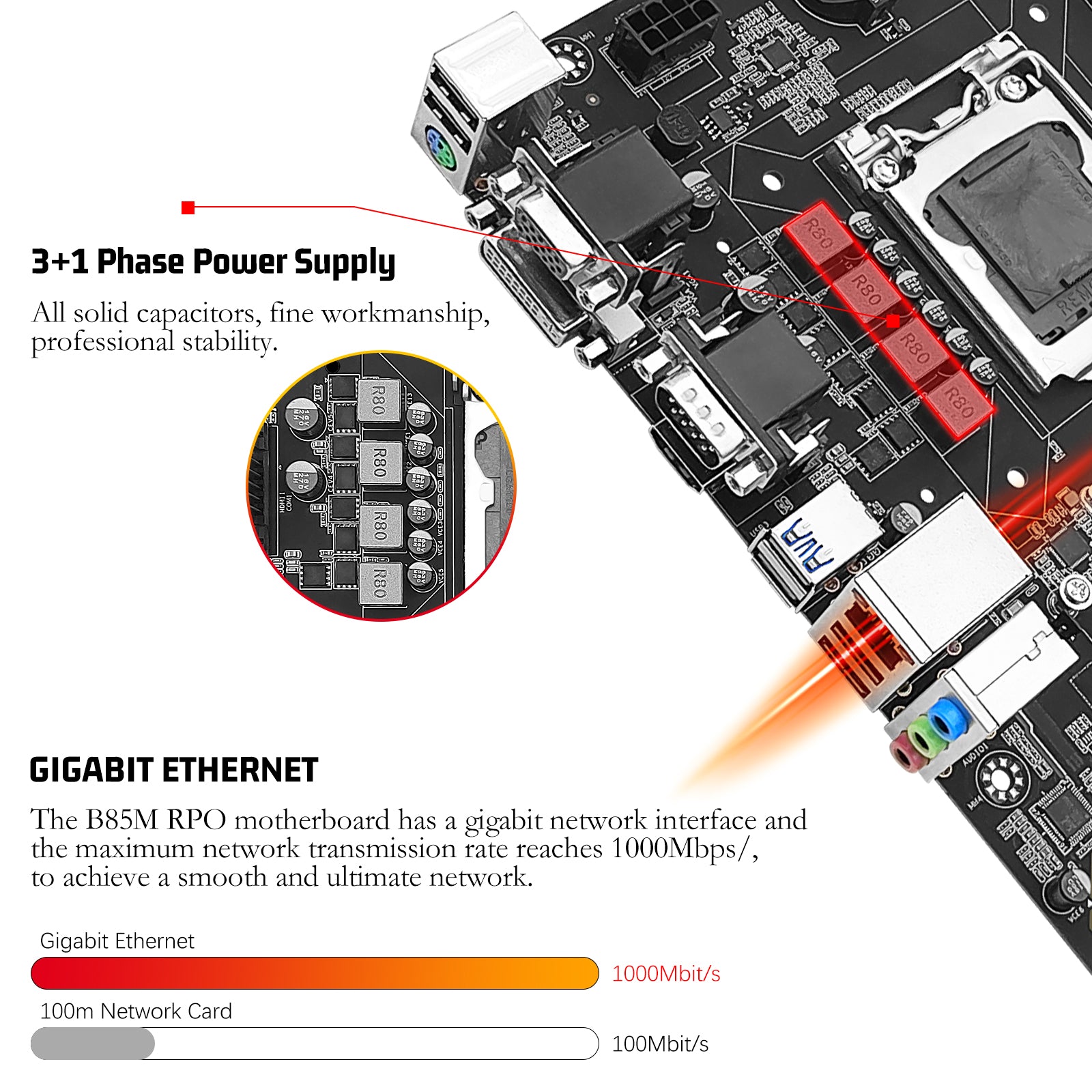

Stable Power Supply: 4-phase power supply, all-solid-state capacitor design, fine workmanship, professional stability. And the LGA 1150 M-ATX placa madre is equipped with 24+8 pin power interface (at least 500w brand power supply)
High Performance Motherboard: The Intel DDR3 motherboard is equipped with B85 chipset. And the 8-layer PCB design effectively extends its service life. Heat dissipation armor protection, with strong heat dissipation, to ensure stable bus communication

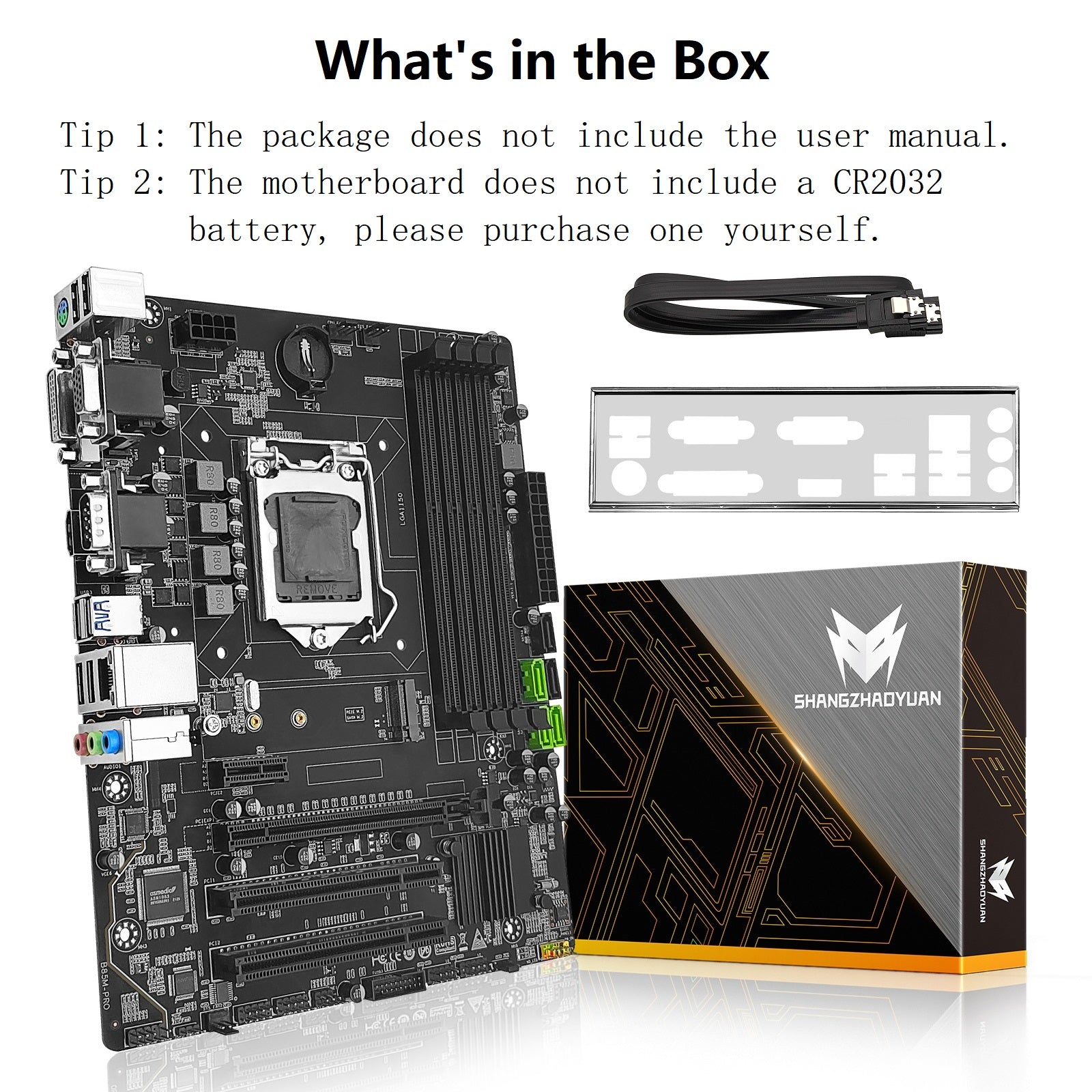

Package Includes: 1*B85M PRO motherboard, 1*SATA cable, 1*I/0 shield. IMPORTANT: The package does not contain a user manual. If you need the manual, please download it from the product description page or ask us on Amazon to get it. And the motherboard does not include a CR2032 battery, please purchase one yourself.
FAQs
Where can I download the driver
You can download the driver through one of the following links:
https://www.drivethelife.com/
https://www.drivermax.com/
The computer won't power on and the fans don't spin
1. Some motherboards won't boot after removing the CMOS battery. Reinstall the CMOS battery and discharge it (clear CMOS) to resolve.
2. Ask the customer for their CPU model to verify compatibility.
3. Verify power connections: Ensure the motherboard power connector and CPU power connector are securely seated. Check if the case power switch is turned on.
4. Confirm the case power-on cable is properly connected.
5. Test with a known-good power supply to isolate potential issues.
6. Remove all peripherals (graphics card, hard drives, USB devices, etc.) before powering on. (For troubleshooting the case switch, directly short the switch pins with a metal object to bypass the switch mechanism.)
7. Replace the CPU.
No display (fans spin but keyboard lights remain unresponsive when pressing Caps Lock)
1. Reset BIOS/CMOS
2. Verify motherboard power supply and CPU power connector are properly seated
3. Check memory compatibility and correct installation position
4. Verify CPU compatibility
5. Replace CPU to determine if it is faulty
6. Replace memory to determine if it is faulty
No display (fans are spinning and the Caps Lock indicator lights up when pressing Caps Lock)
1. Verify monitor is powered on
2. Ensure display cable is securely connected (DP, HDMI, DVI, VGA)
3. If using integrated graphics (no discrete GPU installed), confirm CPU includes integrated graphics (e.g., CPUs with “F” suffix or Intel Xeon series lack integrated graphics; discrete GPU required for normal operation)
4. Verify the display cable is connected to the correct port: plug into the motherboard display port if no discrete GPU is installed; connect to the GPU's display port if a discrete GPU is present.
5. Replace the display cable to rule out cable issues.
6. Replace the graphics card to determine if the monitor is functioning properly.
Press the power button, the fan spins once, then immediately shuts off. Or repeated reboots
1. Reset the BIOS/CMOS.
2. Verify CPU compatibility and ensure the CPU is functioning properly.
3. Check memory compatibility and confirm the memory is operating correctly.
4. Disconnect the graphics card, hard drive, USB devices, and other peripherals. Power on the system to see if the issue persists.
Computer blue screen or crash
1. Verify proper cooling: Ensure the CPU cooler fan is spinning, the cooler base is tightly seated against the CPU, and thermal paste is applied.
2. Replace the CPU.
3. Replace the memory.
4. Replace the hard drive.
5. Replace the operating system.
6. Replace the power supply.
