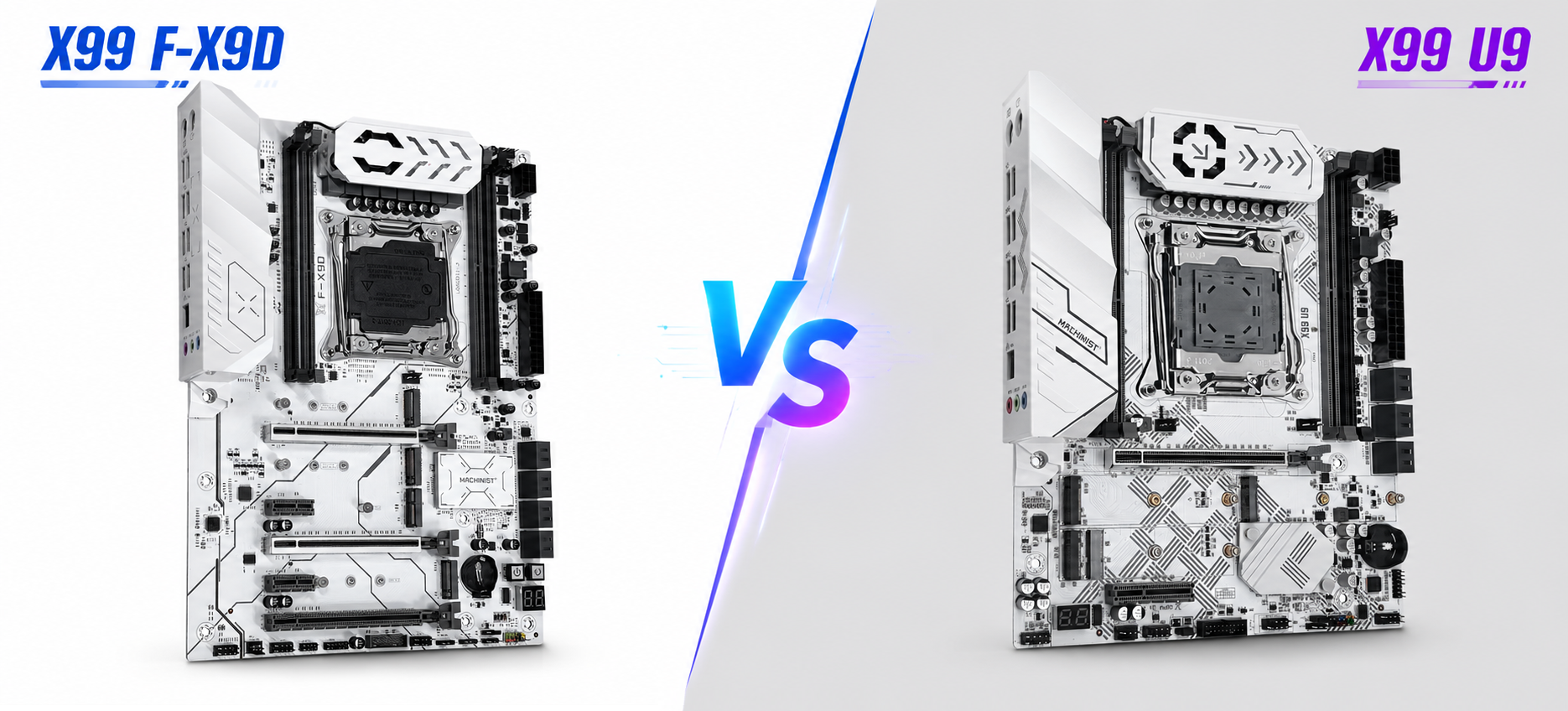

When building a high‑performance workstation on a budget, the motherboard choice often defines your entire experience. MACHINIST offers two compelling X99 options: X99 F-X9D and X99 U9. Both share a thoughtful feature—active VRM cooling fans that keep the power delivery system running cool even under sustained loads. But when it comes to expansion, they take entirely different paths.
The X99 F-X9D is the flexible all-rounder. Its ATX form factor provides room to grow, with 2× PCIe 3.0 x16 slots ready for dual GPUs, 2× NVMe M.2 ports for high-speed storage. Add 8‑phase power design, ARGB ports, and a full ATX form factor, it gives you room to grow and personalize.
The X99 U9, by contrast, is a compact specialist. Its M-ATX footprint fits smaller cases, while three onboard NVMe M.2 slots deliver exceptional storage speed—making it a dream for video editors and data-heavy workflows.
📊Specifications Comparison
| Feature | X99 F-X9D | X99 U9 |
| Board Type | ATX | M-ATX |
| Chipset | Intel C612 | Intel C612 |
| CPU Support |
LGA 2011-3, supports Intel Xeon E5 V3/V4 and 5th/6th Gen Core i7 |
LGA 2011-3, supports Intel Xeon E5 V3/V4 and 5th/6th Gen Core i7 |
| Memory Support | 4-channel DDR4, up to 128 GB | 4-channel DDR4, up to 128 GB |
| Power Delivery Design | 8-phase power supply | 6-phase power supply |
| PCIe Slots | 2* PCIe 3.0x16, 1* PCIe 2.0 x4, 2* PCIe 2.0x1 | 1* PCIe 3.0x16, 1* PCIe 3.0 x4 |
| M.2 Ports | 2* NVMe M.2 (PCIe 3.0 x4), 1* NGFF M.2 (SATA) | 3* NVMe M.2 (PCIe 3.0 x4) |
| SATA Ports | 8* SATA 3.0 | 6* SATA 3.0 |
| Onboard Network Card |
Gigabit Network | Gigabit Network |
| Special Features | 3* ARGB Ports | |
| Wireless Expansion | M.2 WiFi Slot | M.2 WiFi Slot |
| BIOS Functions | Sleep, Secure Boot, TPM 2.0, Wake‑on‑LAN, Auto Power On, RAID (RAID 0, RAID 1, RAID 5), Memory Timing Adjustment, Fan Speed Control, Headless Boot, Above 4G Decoding, Re‑Size BAR Decoding | Sleep, Secure Boot, TPM 2.0, Wake‑on‑LAN, Auto Power On, RAID (RAID 0, RAID 1, RAID 5), Memory Timing Adjustment, Fan Speed Control, Headless Boot, Above 4G Decoding, Re‑Size BAR Decoding |
💡 So, which one fits your build?
▪️ If you need flexible expansion, the F-X9D is your board.
▪️ If you prioritize blazing-fast NVMe storage in a space-saving design, the U9 wins the day.
It all boils down to whether you lean toward all‑round versatility or targeted efficiency.
Either way, you get the stability of active VRM cooling and the proven C612 chipset to power your Xeon E5 V3/V4 processors with confidence.
